Haklift

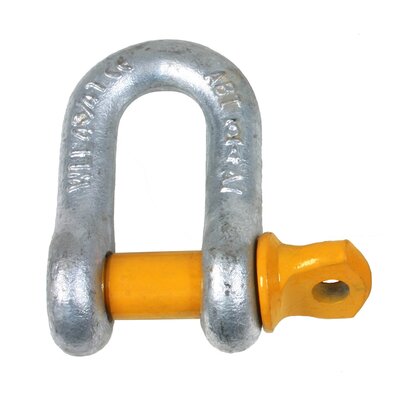

Shackles approved for lifting.



  • Features: RFID-ready
  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -20 - (+)200°C
  • Finish: Hot dip galvanized
  • Standard: US. FED. SPEC. RR-C-271F
  • Safety factor: 6:1
Select a row from the table below, then click the add to quote button

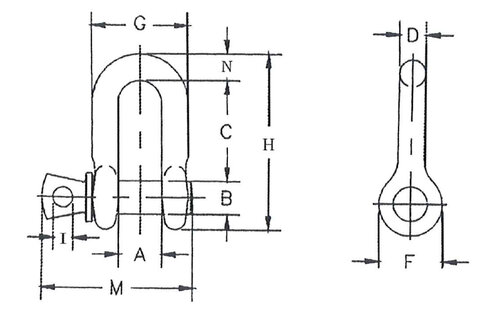

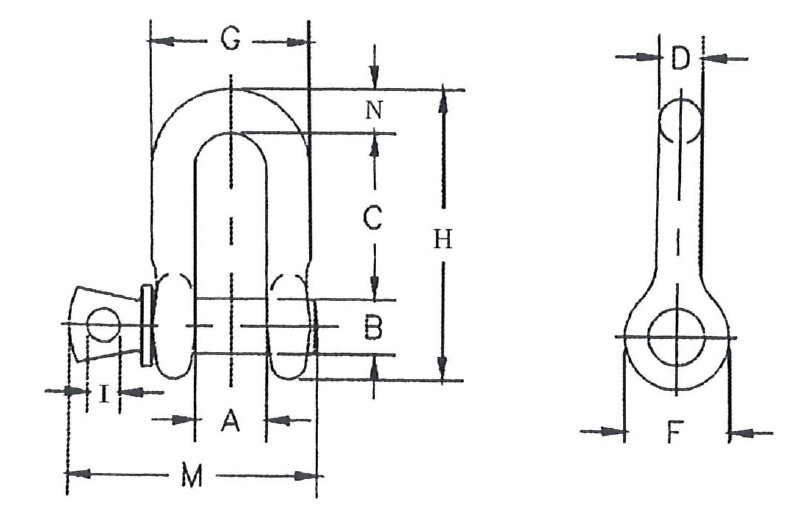

Part Code WLL
ton
A
mm
B
mm
C
mm
D
mm
F
mm
G
mm
H
mm
I
mm
M
mm
Weight
kg
46010187F 0,33 10 7 16 5 14 20 31 4 29 0,02
46010191F 0,5 12 8 23 7 16 25 41 5 35 0,05
46010038F 0,75 14 10 26 8 19 30 49 6 42 0,08
46010043F 1 17 11 32 10 23 36 59 7 52 0,13
46010056F 1,5 19 13 37 11 27 42 68 8 61 0,2
46010064F 2 21 16 42 13 30 46 77 10 69 0,27
46010072F 3,25 27 19 51 16 37 59 96 11 85 0,57
46010079F 4,75 32 23 61 19 46 70 115 13 101 1,2
46010084F 6,5 37 26 72 23 53 81 135 13 114 1,43
46010103F 8,5 43 29 81 25 61 94 151 14 129 2,15
46010093F 9,5 46 32 91 29 69 103 172 16 142 3,06
46010189F 12 52 35 100 32 76 115 191 18 156 4,11
46010050F 13,5 57 38 111 35 84 127 210 19 174 5,28
46010060F 17 61 42 122 38 92 137 230 21 187 7,23
46010068F 25 73 51 146 45 106 162 279 26 231 12,1
46010075F 35 83 57 172 51 122 184 312 31 263 19,2
46010099F 55 105 70 203 67 145 238 377 35 330 32,5
