Haklift

Can be added directly to a lifting chain without a connection link.



  • Material: Steel
  • Marking: CE-marked
  • Finish: Painted, yellow
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button

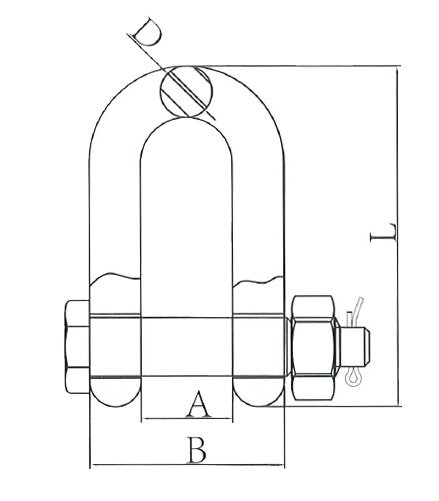

Part Code WLL
ton
For chain Ø
mm
A
mm
B
mm
D
mm
L
mm
Weight
kg
46010098F 2 7/8 15 32 9 56 0,14
46010095F 3,15 10 21 43 11,5 71 0,27
46010096F 5,3 13 25 51 14,5 91 0,5
46010097F 8 16 30,5 67 17,5 111 0,89
