Armaton
Innovative pillar and dropside locking systems for commercial vehicles
Armaton is a Swedish brand specializing in the design and production of modern body systems for commercial vehicles. Founded in 1986, the company has focused from the very beginning on improving functionality, safety, and transport efficiency.
Today, Armaton is part of the Forankra Group – one of Europe’s leading providers of cargo securing solutions.
Armaton 3000XF system
A weight-optimized dropside locking system that ensures safety and ease of use. The specially designed handle minimizes the risk of damage during loading.
Armaton 4000XF system
A lightweight and durable pillar system designed to maximize payload for vehicles up to 6 tonnes. Its ergonomic design simplifies daily operation and enhances user comfort.

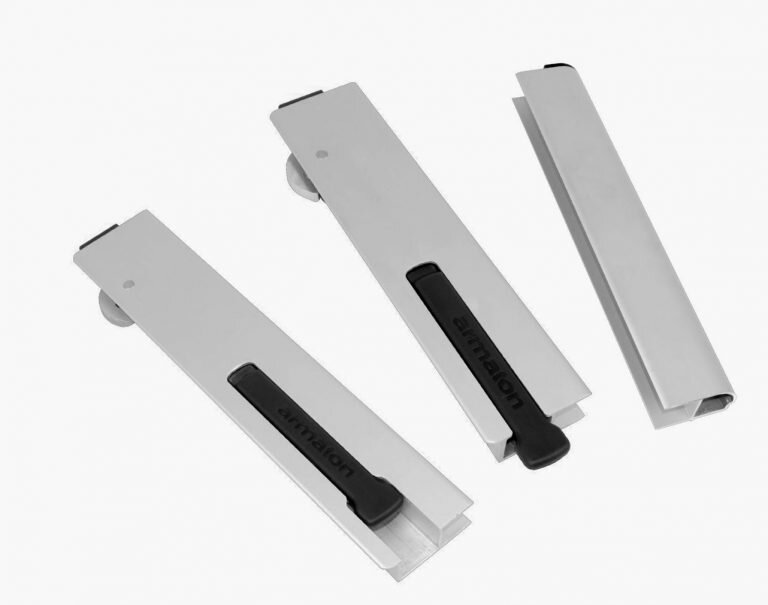

Armaton 3000XF system – lightweight and durable dropside locks
Armaton 3000XF is a dropside locking system designed for commercial vehicles where reliability, safety, and ease of use are essential. Suitable for vehicles with a payload of up to 6 tonnes, it is an ideal solution for modern transport bodies. The locks are engineered to deliver maximum strength while minimizing weight, directly improving transport efficiency. The ergonomic design allows for quick and convenient opening and closing of dropsides, even under intensive use.
It is a solution that performs reliably in everyday operations – both in local transport and more demanding applications.
Special handle design

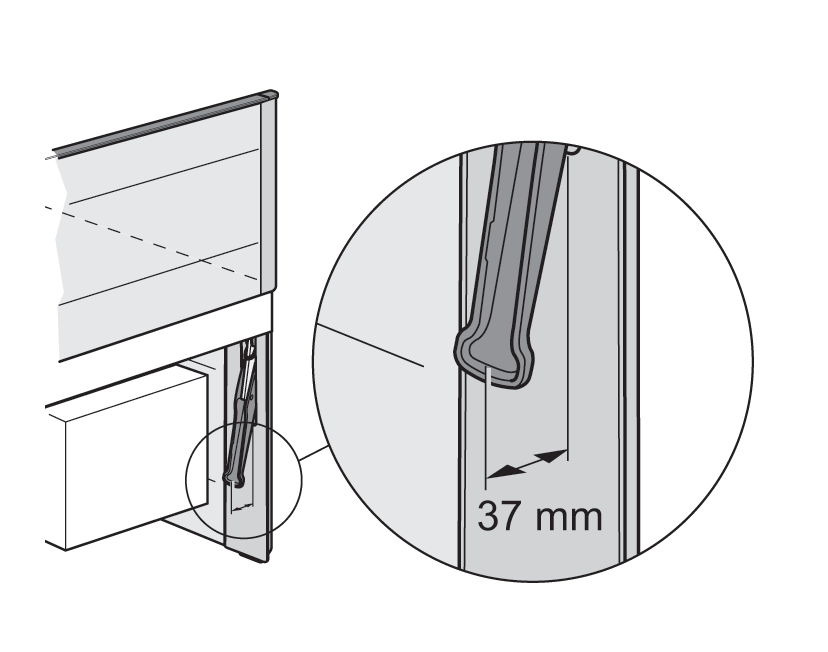

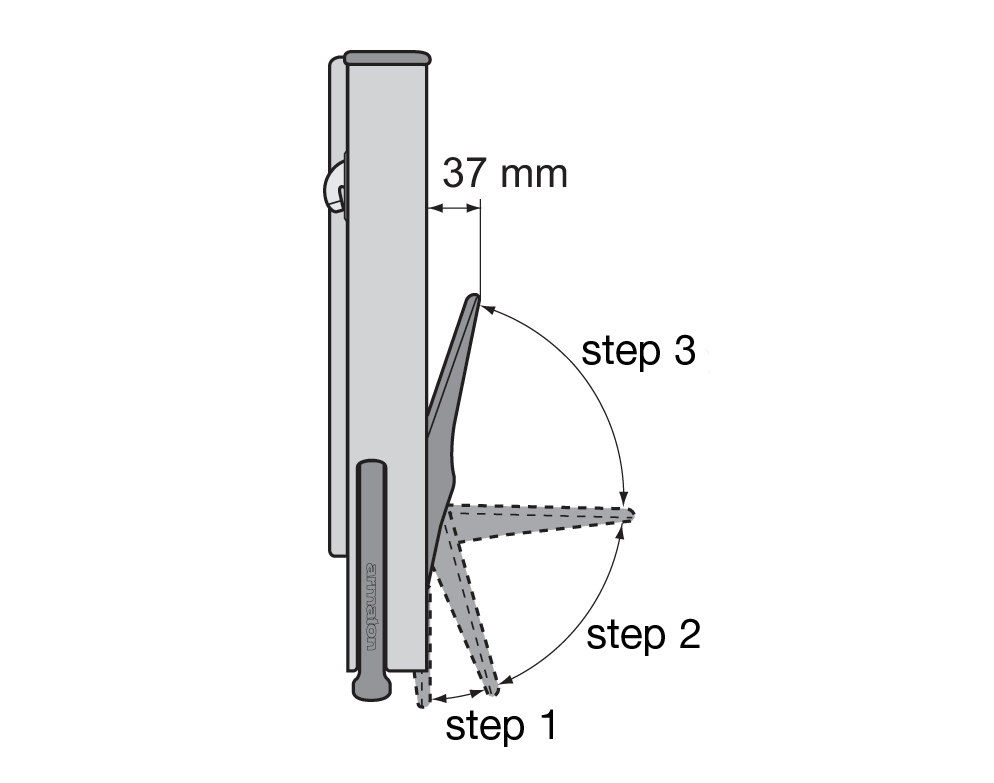

Thanks to the innovative handle design operating within a 160° range, only a minimum clearance of 37 mm is required during lowering. This solution significantly improves ease of use and enhances comfort in confined spaces.
Enhanced safety

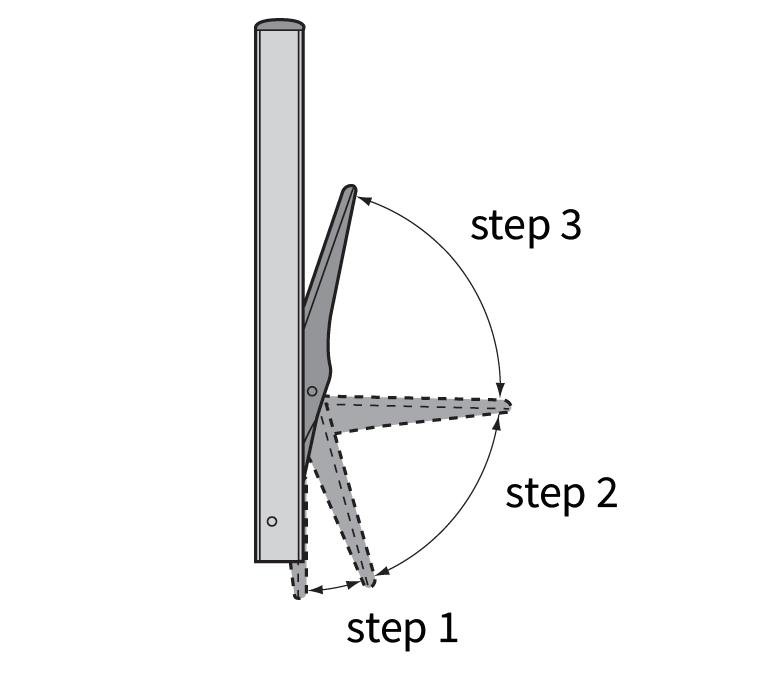

The three-stage locking mechanism is designed to ensure maximum user safety:
Step 1: balance mode – initial positioning of the mechanism
Step 2: stable position – the locking hook remains secured
Step 3: release – controlled opening of the hook
Quiet operation and high durability
The system is designed to eliminate rattling and ensure smooth, quiet operation. The locking hook is equipped with a spring and a replaceable washer that effectively remove debris (e.g. mud) from all directions between the pillar and the slider.
The optimized design ensures high adaptability as well as easy, smooth, and secure locking in all operating conditions.
Armaton 4000XF system – pillar system for maximum payload
Armaton 4000XF is a modern pillar system designed for commercial vehicles where maximum payload and ease of use are essential. It performs perfectly in vehicles with a payload of up to 6000 kg. The pillar design combines low weight with high strength, increasing transport efficiency without compromising safety. The system ensures stable securing of both the cargo body and tarpaulin, while maintaining the flexibility required for everyday use.
Thanks to the use of anodized aluminum, the pillars are corrosion-resistant and virtually maintenance-free, resulting in a long service life and reduced operating costs.
Easy system expansion
The system can be easily expanded using extensions and adapters. If additional equipment needs to be installed (including from other brands), simply remove the cap from the pillar and select the appropriate adapter to fit the profile.
The modular design provides high flexibility and allows the body to be easily adapted to changing needs.
Unique handle movement
The handle operates within a 160° range, making loading and unloading significantly easier while improving operational safety. Its design also allows for easy replacement when needed.
Three-stage mechanism:
Step 1: balance mode
Step 2: stable position – working clearance maintained
Step 3: release – opening of the hook

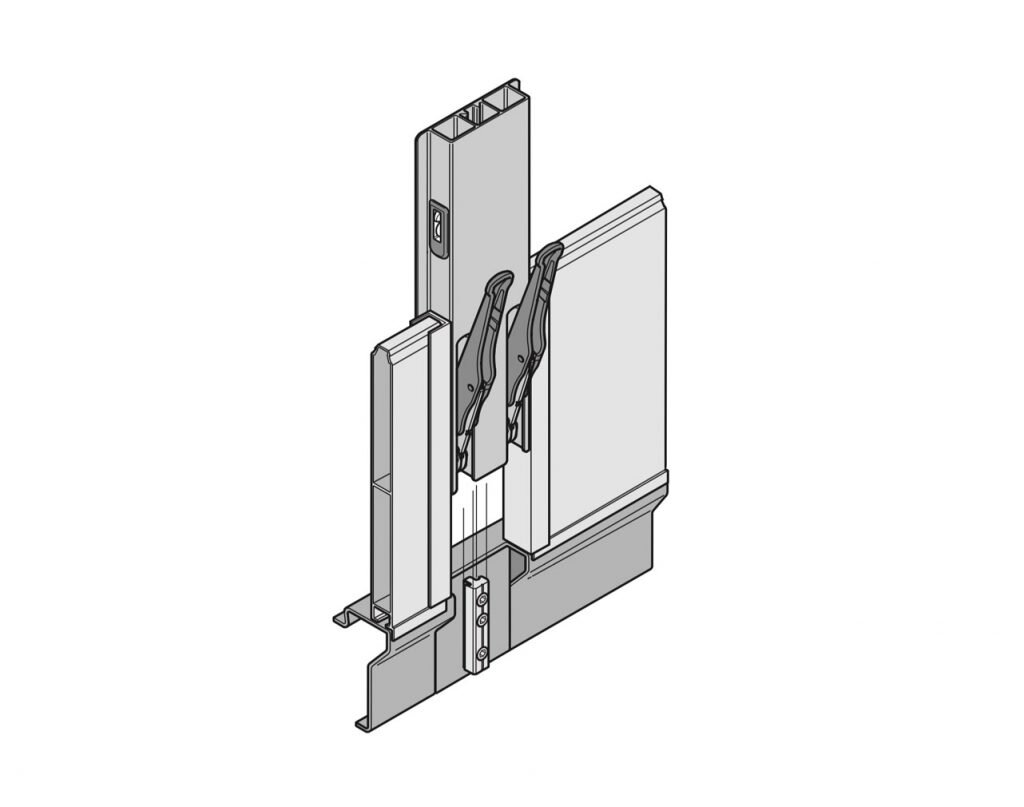

Stable and secure fastening

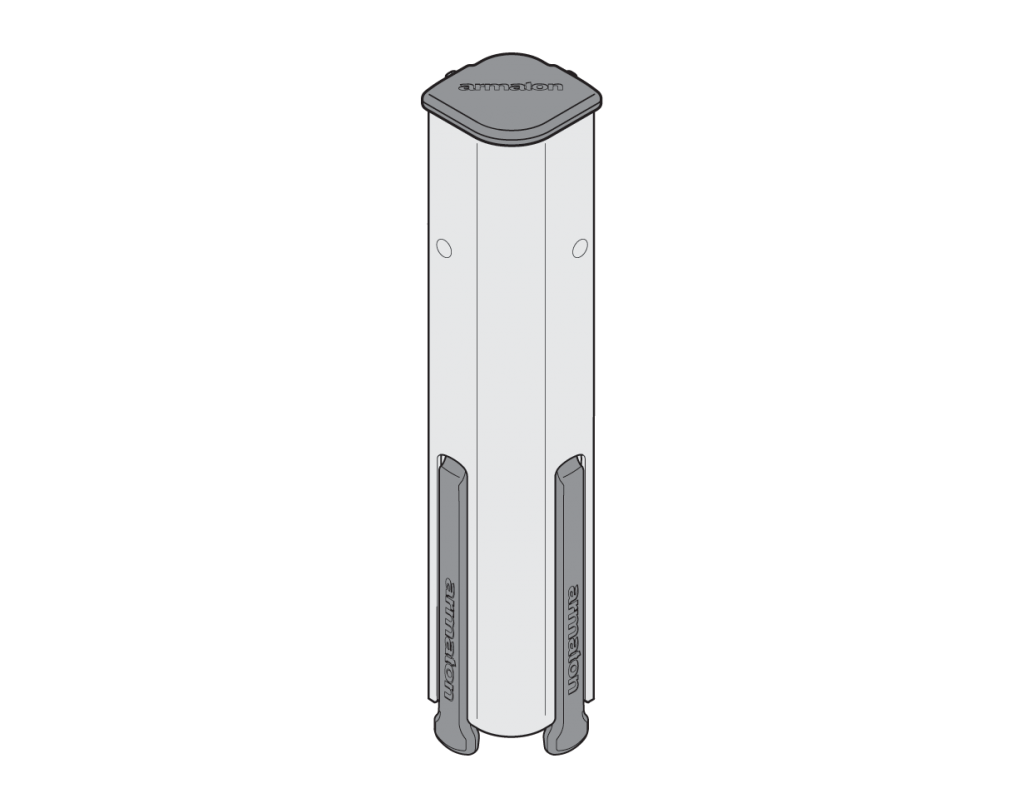

The system ensures reliable fastening of body components. Side and rear pillars can be easily removed from the holder in the open position, improving ease of use.
When the handle is in the closed position, the pillar remains securely locked, ensuring safety during transport.

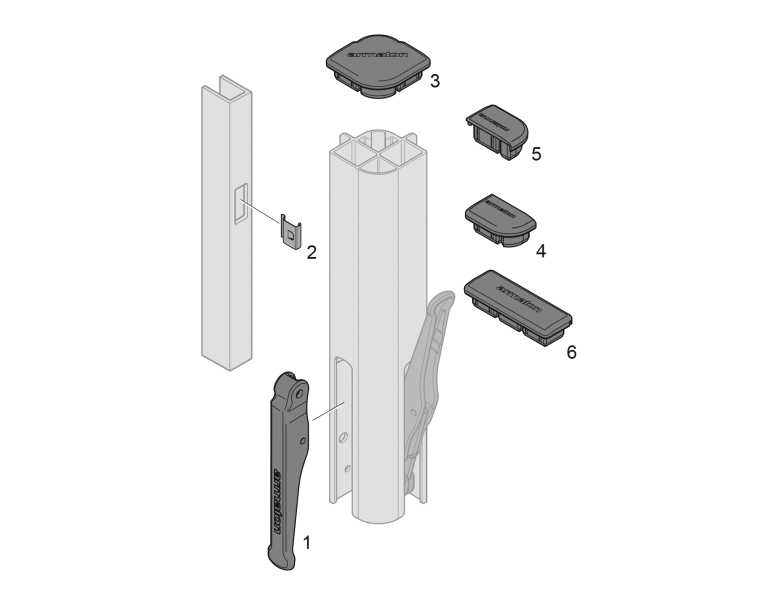

Lower maintenance costs
Replaceable handles significantly reduce operating costs. A dedicated set of handles is included as a spare part, allowing for quick and easy replacement without the need to interfere with the entire structure.
Availability for different dropside heights
Armaton 3000XF
The system is available as standard for three dropside heights: 300 mm, 350 mm, and 400 mm, allowing easy adaptation to various body types.
Armaton 4000XF
The system is available as standard for three dropside heights: 300 mm, 400 mm, and 600 mm, offering greater flexibility depending on the application.
