Haklift

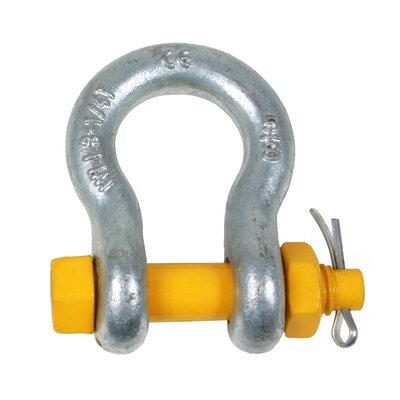

Shackles approved for lifting.



  • Features: RFID-ready
  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -20 - (+)200°C
  • Finish: Hot dip galvanized
  • Standard: US. FED. SPEC. RR-C-271F
  • Safety factor: 6:1
Select a row from the table below, then click the add to quote button

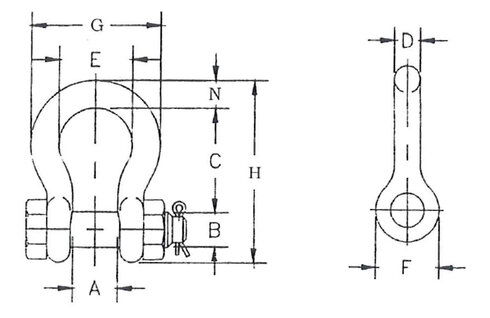

Part Code WLL
ton
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
N
mm
Weight
kg
46010034F 0,5 12 8 29 7 20 16 33 47 7 0,05
46010037F 0,75 14 10 31 8 22 19 38 53 8 0,1
46010041F 1 17 11 37 10 26 23 45 63 10 0,15
46010054F 1,5 19 13 43 11 30 27 52 74 11 0,22
46010063F 2 21 16 48 13 34 30 59 84 13 0,36
46010071F 3,25 27 19 61 16 43 38 75 106 18 0,76
46010078F 4,75 32 23 72 19 51 46 89 126 21 1,23
46010083F 6,5 37 26 84 23 58 53 102 148 25 1,79
46010089F 8,5 43 29 96 26 69 61 119 167 27 2,57
46010092F 9,5 46 32 108 29 74 69 131 190 32 3,75
46010047F 12 52 35 119 32 83 76 146 210 35 5,31
46010194F 13,5 57 38 133 35 92 84 162 233 38 7,18
46010059F 17 61 42 146 38 99 92 175 254 41 9,43
46010067F 25 73 51 178 45 127 106 225 313 57 15,4
46010074F 35 83 57 197 51 146 122 256 348 61 23,7
46010171F 55 105 70 267 67 184 145 327 453 80 44,61
46010100F 85 127 83 330 76 200 165 365 546 92 70
46010186F 120 133 96 372 92 229 203 419 626 105 120
