Haklift

Shackles approved for lifting



  • Features: RFID-ready
  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -20 - (+)200°C
  • Finish: Hot dip galvanized
  • Standard: US. FED. SPEC. RR-C-271F
  • Safety factor: 6:1
Select a row from the table below, then click the add to quote button

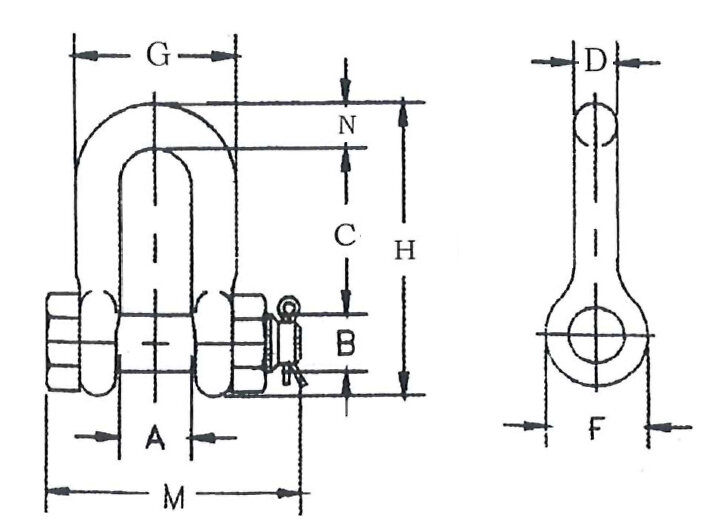

Part Code WLL
ton
A
mm
B
mm
C
mm
D
mm
F
mm
G
mm
H
mm
M
mm
N
mm
Weight
kg
46010035F 0,5 12 8 19 7 16 25 41 40 7 0,06
46010039F 0,75 14 10 26 8 19 30 49 46 8 0,1
46010045F 1 17 11 31 10 23 36 59 55 10 0,15
46010102F 1,5 19 13 36 11 27 41 68 64 11 0,22
46010065F 2 21 16 42 13 30 46 77 71 13 0,34
46010073F 3,25 27 19 51 16 38 59 96 90 16 0,67
46010081F 4,75 32 23 61 19 46 70 115 103 21 1,14
46010085F 6,5 37 26 72 23 53 81 135 120 25 1,74
46010101F 8,5 43 29 81 26 61 94 151 135 26 2,52
46010094F 9,5 46 32 91 29 69 103 172 150 32 3,45
46010048F 12 52 35 100 32 76 115 191 165 35 4,9
46010051F 13,5 57 38 111 35 84 127 210 183 38 6,24
42040139F 17 61 42 122 38 92 137 230 196 42 8,39
46010195F 25 73 51 146 45 106 162 279 230 54 14,2
46010076F 35 82 57 172 51 122 184 312 264 51 21,2
46010192F 55 105 70 203 67 145 238 377 344 67 38,6
46010087F 85 127 83 216 76 165 279 429 419 89 56
46010185F 120 133 96 240 92 203 320 500 510 102 95
