Haklift
  • Not for lifting

Commercial quality turnbuckles for all kind of use



  • Material: Steel
  • Finish: Electro galvanized
  • Note: Not for lifting
    Select a row from the table below, then click the add to quote button

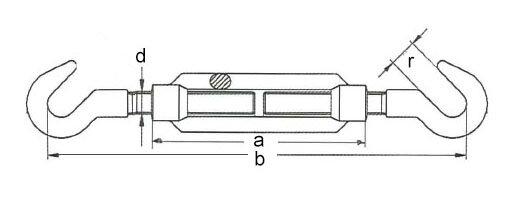

    Part Code Packing Qty. a
    mm
    b
    mm
    c
    mm
    d
    mm
    r
    mm
    Weight
    kg
    47070037F 10 110 156 – 236 8 6 8 0,095
    47070038F 10 110 160 – 240 10 8 11 0,165
    47070039F 10 125 170 – 263 13 10 14 0,29
    47070020F 10 125 201 – 285 17 12 16 0,43
    47070021F 10 140 222 – 322 17 14 18 0,62
    47070040F 10 170 259 – 377 19 16 19 0,92
    47070041F 5 200 307 – 445 24 20 20 1,63
    47070042F 2 220 342 – 496 27 22 26 2,2
    47070022F 2 255 377 – 561 27 24 26 3
    47070043F 1 255 391 – 570 31 30 33 4,6
