Electric chain hoist with hook suspension

General:
The KITO ER2 Electric Chain Hoists are durable, safe and easy to use hoists. It has a top hook or overhead mounting suspension, aluminium die-cast body, electromagnetic brake and a canvas chain container.
It lifts from 125 kg up to 5 tons.

Standard configuration:

  • 400 V/50 Hz
  • Contactor control for single speed
  • CH-Meter: operating hours /number of starts
  • Ergonomic push button control
  • Upper-lower limit switch
  • Nickel-plated load chain class grade 80 (DAT) in accordance with Norm EN 818-7
  • Thermal protector
  • Carbon friction clutch


Options:

  • 500 V/Contactor control
  • 230 V/50 Hz/60 Hz, 3 phase
  • Rubber bumpers for motorized trolleys
  • Additional mechanical brake
  • Electrical overload limiter
  • Acoustic overload signal
  • Radio remote control
  • Variable speed control
  • Level limit switch
  • Steel chain container
  • Trolley versions: motorized, geared and plain
  • Note: Can also be delivered with infinitely variable speed control, programmable level limits and cylinder control.

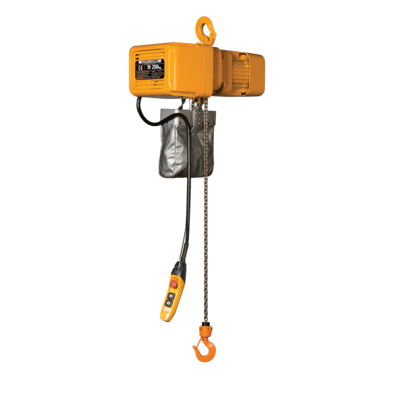

    ER2025
    ER2 cylinder control
    ER2 Single_CE
    Select a row from the table below, then click the add to quote button
    Code WLL
    ton
    Load chain Ø
    mm
    Chain falls Lifting motor Output (kW) Lifting motor Rating (%ED) Lifting speed* 50Hz
    m/min
    Class ISO/FEM Additional weight per 1 m lift Test load kg Weight
    kg
    ER2-001H 0,125 4,3 x 12 1 0,56 60 14,1 M5/2m 0,42 156 27
    ER2-003S 0,25 4,3 x 12 1 0,56 60 9,1 M5/2m 0,42 313 27
    ER2-003H 0,25 6,0 x 16,8 1 0,56 60 13,4 M5/2m 0,81 313 37
    ER2-005L 0,5 6,0 x 16,8 1 0,9 60 3,8 M5/2m 0,81 625 33
    ER2-005S 0,5 6,0 x 16,8 1 0,56 60 7,3 M5/2m 0,81 625 37
    ER2-010L 1 7,7 x 21,5 1 0,9 60 3,5 M5/2m 1,33 1 250 47
    ER2-010S 1 7,7 x 21,5 1 0,9 60 7,1 M5/2m 1,33 1 250 54
    ER2-016S 1,6 10,2 x 28,5 1 1,8 60 4,5 M5/2m 2,3 2 000 72
    ER2-020L 2 10,2 x 28,5 1 1,8 60 3,7 M4/1Am 2,3 2 500 73
    2 10,2 x 28,5 1 3,5 60 7,0 M4/1Am 2,3 3 130 91
    ER2-025S 2,5 11,2 x 31,3 1 3,5 60 5,7 M4/1Am 2,8 4 000 104
    ER2-032S 3,2 10,2 x 28,5 2 3,5 60 4,4 M4/1Am 4,7 6 250 107
    ER2-050S 5 11,2 x 31,3 2 3,5 60 2,9 M4/1Am 5,6 132
    * Note: The high speed is present to the maximum speed at the KITO factory in Japan. The low speed can be increased or respectively reduced.

    Dimensions

    WLL
    Produkt
    Min. headroom C
    D
    a
    b
    d
    e
    f
    g
    h
    i
    tons
    code
    mm
    mm
    mm
    mm
    mm
    mm
    mm
    mm
    mm
    mm
    0,125
    ER2-001H
    350
    430
    478
    321
    219
    259
    260
    27
    99
    93
    0,250
    ER2-003S
    350
    430
    478
    321
    219
    259
    260
    27
    99
    93
    0,250
    ER2-003H
    370
    490
    510
    348
    242
    268
    283
    27
    113
    106
    0,500
    ER2-005L
    370
    490
    513
    348
    242
    271
    283
    27
    113
    106
    0,500
    ER2-005S
    370
    490
    510
    348
    242
    268
    283
    27
    113
    106
    1
    ER2-010L
    430
    550
    589
    376
    291
    298
    335
    31
    129
    118
    1
    ER2-010S
    430
    550
    598
    376
    291
    307
    335
    31
    129
    118
    1,6
    ER2-016S
    510
    630
    646
    427
    308
    338
    384,5
    34
    160,5
    137,5
    2
    ER2-020L
    575
    630
    646
    427
    308
    338
    384,5
    39
    160,5
    137,5
    2
    ER2-020S
    590
    630
    703
    427
    347
    356
    384,5
    39
    160,5
    137,5
    2,5
    ER2-025S
    625
    840
    736
    445
    337
    399
    437,5
    39
    173,5
    142,5
    3,2
    ER2-032S
    785
    920
    703
    427
    347
    356
    397
    44
    216
    82
    5
    ER2-050S
    850
    920
    736
    445
    337
    399
    439
    47
    231,5
    84,5
