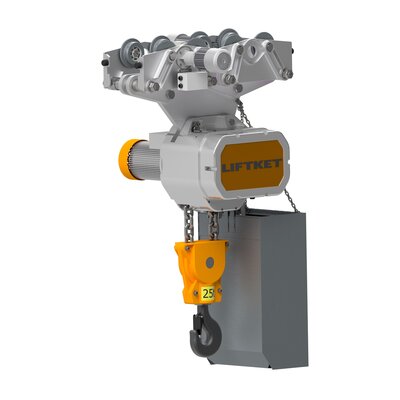

Liftket

The LIFTKET product portfolio offers you standardized hoists that can be adjusted to your requirements in a modular way, as well as highly specialized solutions. Larger lifting and operating heights are just as viable as deviating voltages and special solutions of any kind.

Features:

  • Power supply 400 V, 3 phase, 50 Hz
  • From 4.000 kg to 25.000 kg we lift everything that moves you
  • FEM ratings from Fem 1Bm to 4m (ISO M3 to M7)
  • Protection class IP55, insulation class F
  • Galvanized load chain to DIN 818-7 quality class DAT
  • A wide range of options can be selected as standard
  • Optional one or two lifting speeds from 2 to 32 m/min.
  • With heavy-duty end position switch-off as standard (at 24VAC)
  • Up to 200 meters high safely and anywhere
  • Patented safety-brake-clutch system
  • Modular hoist design
  • Simply and cost effective maintenance and repair
  • A unique ID makes it possible to trace exactly when a particular electric chain hoist was built by whom and with which materials – even after 10 years

Trolleys/Boogies: Manual or electric trolleys in various designs for each steel section girder.

  • Note: Standard version delivered with lifting eye (connection between crane and trolley). Alternatively, comes with suspension hook. Standard stock hoist with 6 m lifting height.
    Select a row from the table below, then click the add to quote button
    Part Code WLL
    ton
    Chain falls Duty rating % ED Class ISO/FEM Lifting speed at 50 Hz
    m/min
    Power of lifting motor at 50 Hz kW Load chain
    mm
    A
    mm
    B
    mm
    C
    mm
    G
    mm
    G2
    mm
    øN
    mm
    J
    mm
    Weight
    kg
    13.05ST0400015614-03 4 1 60/40 M5 / 2m 5,6/1,4 6,0/1,3 16x45 567 183 434 825 901 65 42 224
    13.05ST0500015614-03 5 1 60/40 M4 / 1Am 5,6/1,4 6,0/1,3 16x45 567 183 434 825 901 65 42 224
    13.05ST0600015614-03 6 1 60/40 M3 / 1Bm 5,6/1,4 6,4/1,6 16x45 567 183 434 825 901 65 42 224
    13.05ST0800022807-03 8 2 60/40 M5 / 2m 2,8/0,7 6,0/1,3 16x45 567 183 434 918 994 65 50 246
    13.05ST0800016416-03 8 1 25/10 M5 / 2m 6,4/1,6 12,5/3,1 23,5x66 700 423 556 1 153 1 266 65 50 517
    13.05ST1000022807-03 10 2 60/40 M4 / 1Am 2,8/0,7 6,0/1,3 16x45 567 183 434 918 994 65 50 246
    13.05ST1000016416-03 10 1 25/10 M4 / 1Am 6,4/1,6 12,5/3,1 23,5x66 700 423 556 1 153 1 266 65 50 517
    13.05ST1300022807-03 12 2 60/40 M3 / 1Bm 2,8/0,7 6,4/1,6 16x45 567 183 434 918 994 65 50 246
    13.05ST1300016416-03 12 1 25/10 M3 / 1Bm 6,4/1,6 12,5/3,1 23,5x66 700 423 556 1 153 1 266 65 50 517
    13.05ST1600023208-03 16 2 25/10 M5 / 2m 3,2/0,8 12,5/3,1 23,5x66 700 423 556 1 456 1 703 65 67 613
    13.05ST2000023208-03 20 2 25/10 M4 / 1Am 3,2/0,8 12,5/3,1 23,5x66 700 423 556 1 456 1 703 65 67 613
    13.05ST2500023208-03 25 2 25/10 M3 / 1Bm 3,2/0,8 12,5/3,1 23,5x66 700 423 556 1 456 1 703 65 67 613

    Part Code = last two digits indicates the lifting height: 03 = 3 m lifting height
    * Weight with 3 m lift chain
