YOKE snatchblocks are available from 2 tons to 8 tons, for wire rope sizes 8 mm to 19 mm. Supplied with bronze bushings and 4.5”-14” with pressure lube fittings.

  • Fatigue rated.
  • Permanent batch codes link to test certificates for easy traceability.
  • Meets or exceeds all requirements of ASME B30.26 and have ABS type approval.
  • Material: Highest quality tensile steel.
  • Marking: Part number, wire rope size and working load limit.
  • Finish: Yellow and blue painted.
  • Safety factor: 4:1

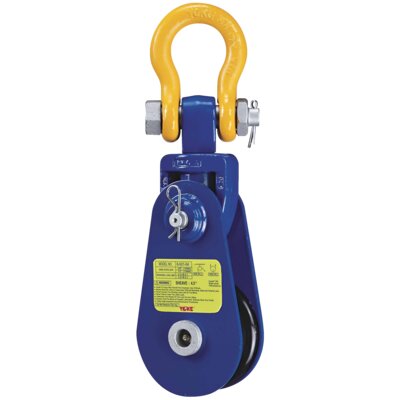

Product Picture 1

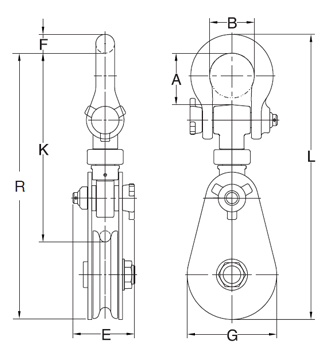

Product Picture 2
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Bearing type Sheave dia
inch
Wire rope size
mm
Replacement sheave A
mm
B
mm
E
mm
F
mm
K
mm
L
mm
G
mm
R
mm
Weight
kg
46100021B 2 BB 3 8-10 8-500-02 35,5 30 - - - 227,6 75 - 2
46100022B 4 BB 4,5 10-13 8-500-04 64 50 79 - - 355,1 107,5 - 6
46100023B 8 BB 6 16-19 8-500-08 87,5 76 105 32 319,3 482,8 152 450,8 13
46100024B 8 BB 8 16-19 8-500-0808 87,5 76 - - - - 220 - 20
