verope
  • Ordinary right hand lay
  • Ordinary left hand lay
  • Galvanized
  • Bright
  • Compacted strands
  • Not to be used with swivel

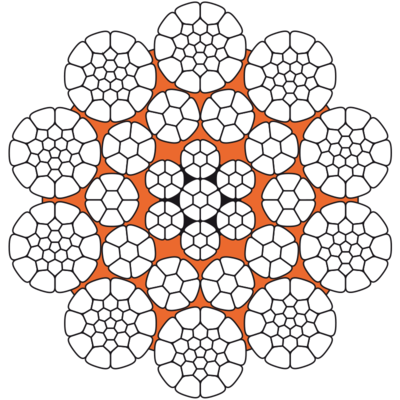

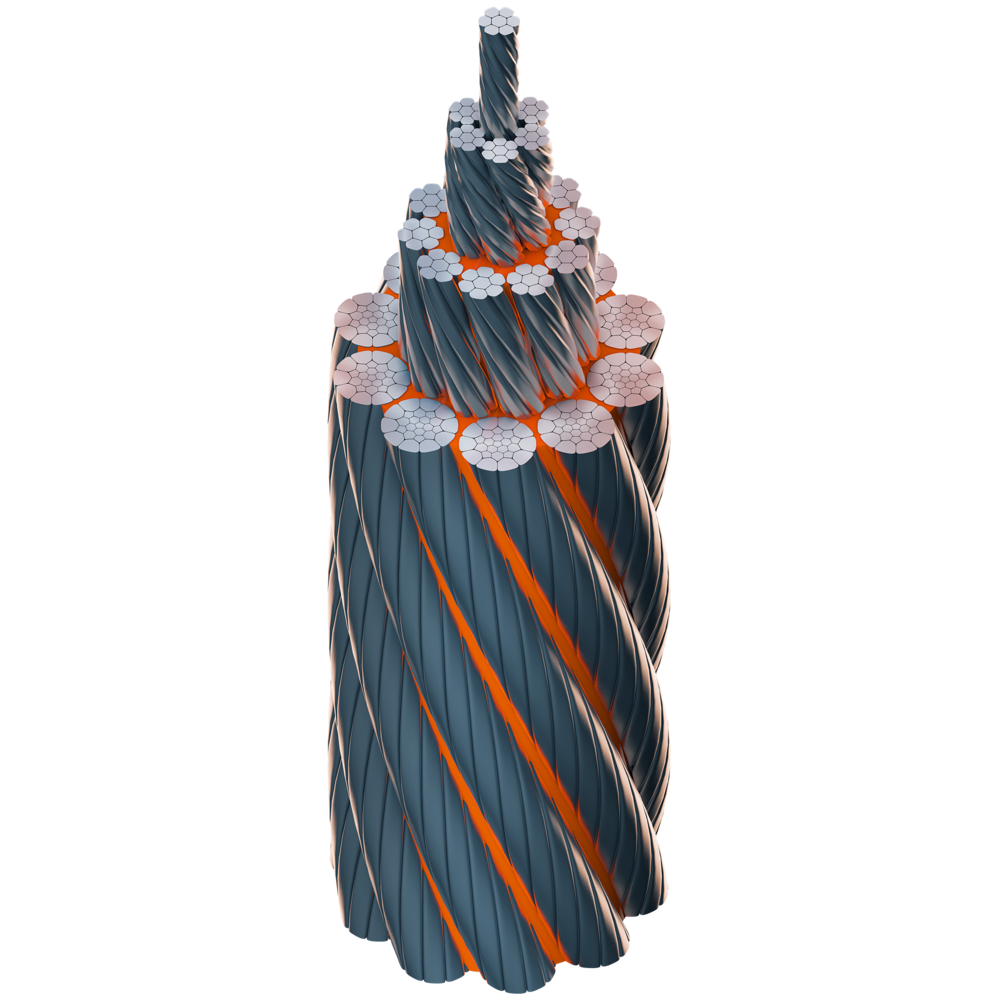

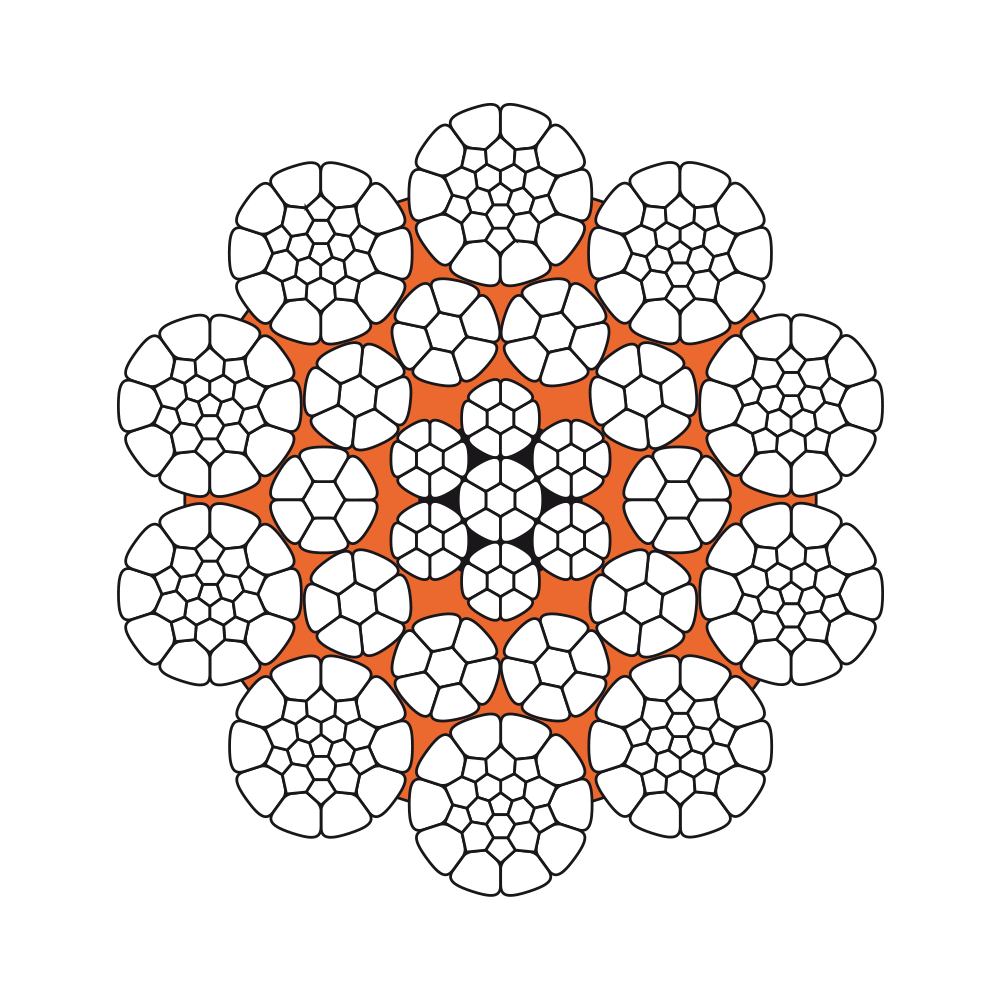

Wire rope construction: verotech 10 is a very flexible 10-strand, non-rotation-resistant rope in parallel lay construction with compacted strands and a rope core covered with a plastic layer.

Features:

  • Very high breaking strength.
  • Very stabile rope construction with very good fatigue properties.
  • A plastic layer between inner and outer strands prevents inner wear and protects the core from corrosion.
  • Very high resistance against flattening and wear.
  • Specially suitable for multilayer spooling.

ISO 4309 Rope Category No: All Diameters RCN.11.

  • Marking: According to standard
  • Standard: EN 12385-4
  • Note: verotech 10 may not be used with a swivel.
  • Fill factor: 0.732
  • Tolerance Ø: +2% to +4%
  • Overhead cranes For the use with overhead crane
  • Ladle crane Wire for ladle crane
verotech10
Verotech 10
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
1960 N/mm²
Min. breaking force
kN
2160 N/mm²
Weight
kg/100m
01.G13VT1060G 6 21 34,9 38 18
01.G13VT1065G 6,5 44,6 21
01.G13VT1070G 7 28 47,5 51,7 24
01.G13VT1075G 7,5 59,3 28
01.G13VT1080G 8 37 62 67,6 32
01.G13VT1085G 8,5 41,5 70 76,3 36
01.G13VT1090G 9 47 78,5 85,5 40
01.G13VT1100G 10 57 96,9 105,6 49
01.G13VT1110G 11 70 117,3 127,7 60
01.G13VT1120G 12 83 139,5 152 71
01.G13VT1130G 13 97 163,8 178,4 84
01.G13VT1140G 14 113 189,9 206,9 97
01.G13VT1150G 15 129 218 237,5 111
01.G13VT1160G 16 147 248,1 270,2 127
01.G13VT1170G 17 166 280,1 305,1 143
01.G13VT1180G 18 186 314 342 160
01.G13VT1190G 19 208 349,8 381 179
01.G13VT1200G 20 230 387,6 422,2 198
01.G13VT1210G 21 254 427,4 465,5 218
01.G13VT1220G 22 278 469 510,9 239
01.G13VT1230G 23 304 512,6 558,4 262
01.G13VT1240G 24 331 558,2 608 285
01.G13VT1250G 25 359 605,7 659,7 309
01.G13VT1260G 26 389 655,1 713,5 334
01.G13VT1270G 27 419 706,5 769,5 360
01.G13VT1280G 28 451 759,8 827,5 388
01.G13VT1290G 29 484 815 887,7 416
01.G13VT1300G 30 517 872,2 950 445
01.G13VT1310G 31 552 931,3 1 014 475
01.G13VT1320G 32 589 992,3 1 081 506
01.G13VT1330G 33 626 1 055 1 149 538
01.G13VT1340G 34 665 1 120 1 220 572
