verope
  • Ordinary right hand lay
  • Ordinary left hand lay
  • Right hand langs lay
  • Left hand langs lay
  • Galvanized
  • Bright
  • Not to be used with swivel

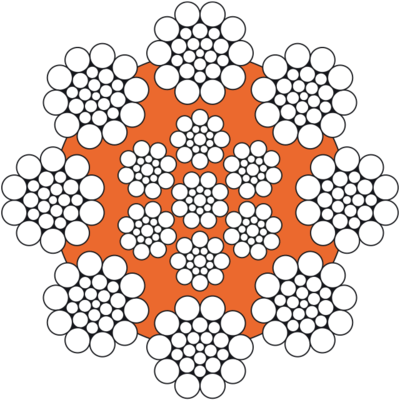

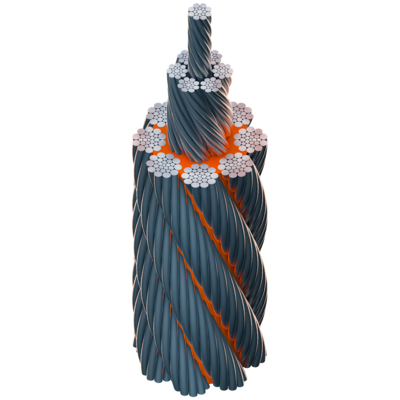

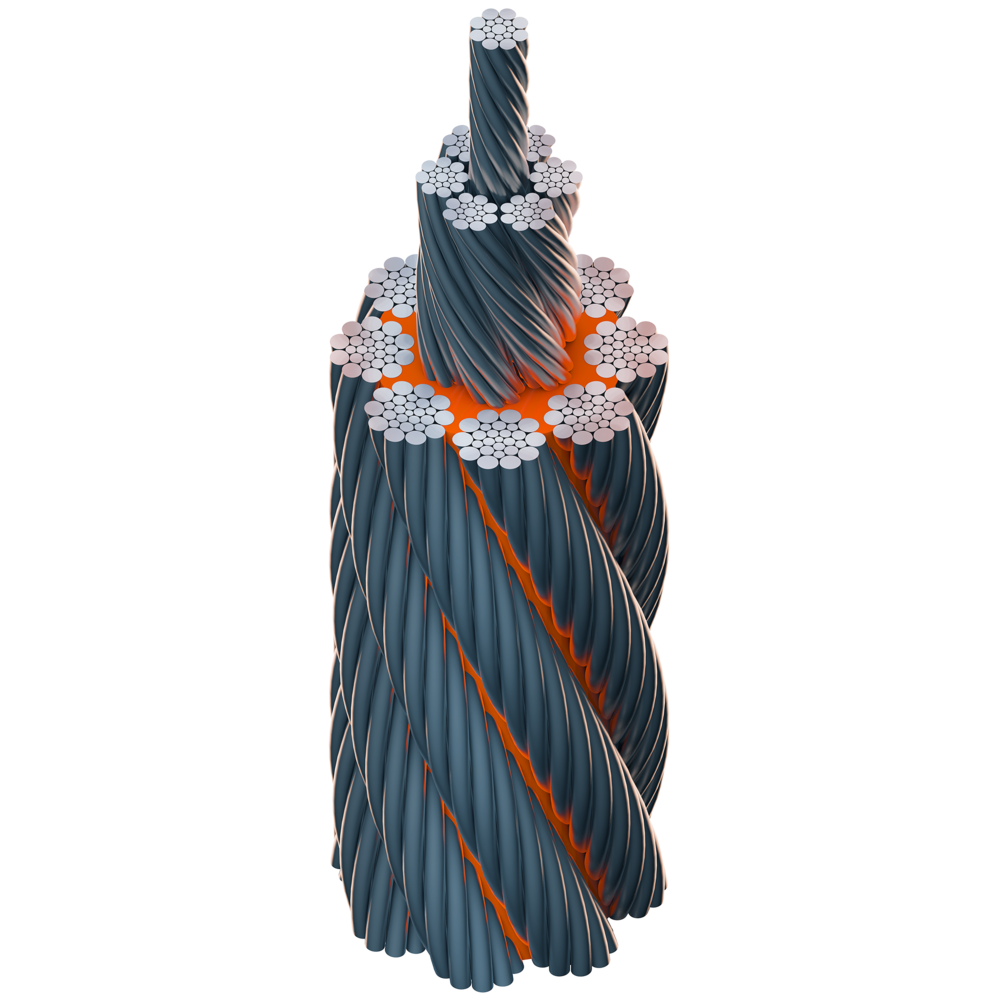

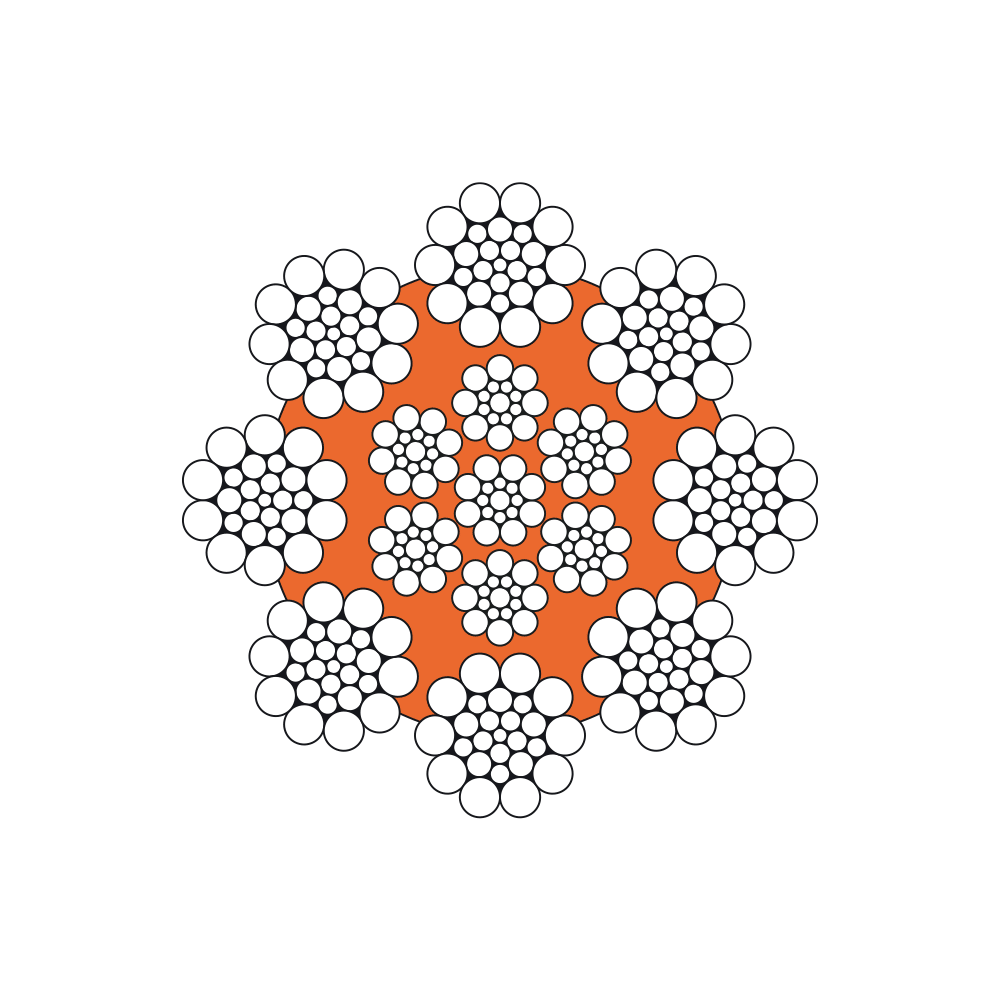

Wire rope construction: Verostar 8 is a 8 strand non-rotation-resistant rope made out of conventional strands, plastic layer between the inner and outer strands.

Features:
- High breaking strength
- Very stable rope structure and achieves good bending fatigue results
- Achieves best service life in reeving systems with single layer drums

ISO 4309
Rope Category No
: Up to 42mm RCN.09, 43-48mm RCN.11, > 48mm RCN.13

  • Marking: According to standard
  • Standard: EN 12385-4
  • Warning: verostar 8 may not be used with a swivel.
  • Fill factor: 0.61
  • Tolerance Ø: +2% to +4%
  • Overhead cranes For the use with overhead crane
  • Tower crane Wire for tower crane
  • Container crane For use with container crane
  • Mobile port crane Wire for mobile port crane
  • Loading crane Wire for loading crane
  • Piling crane Wire for piling crane
  • Ladle crane Wire for ladle crane
  • STS crane Wire for STS crane
  • Straddle carrier Wire for straddle-carrier
  • RTG Wire for RTG-crane
verostar8
Verostar8
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
1770 N/mm²
Min. breaking force
kN
1960 N/mm²
Weight
kg/100m
01.G11VSR080E 8 31 47,9 53 28
01.G11VSR090E 9 39 60,6 67,1 35
01.G11VSR100E 10 48 74,8 82,8 43
01.G11VSR110E 11 58 90,5 100,2 52
01.G11VSR120E 12 69 107,7 119,3 62
01.G11VSR130E 13 81 126,4 140 73
01.G11VSR140E 14 94 146,6 162,3 85
01.G11VSR150E 15 108 168,3 186,3 97
01.G11VSR160E 16 123 191,5 212 110
01.G11VSR170E 17 138 216,2 239,4 125
01.G11VSR180E 18 155 242,3 268,3 140
01.G11VSR190E 19 173 270 299 156
01.G11VSR200E 20 192 299,2 331,3 173
01.G11VSR210E 21 211 329,8 365,2 190
01.G11VSR220E 22 232 362 400,9 209
01.G11VSR230E 23 253 395,7 438,1 228
01.G11VSR240E 24 276 430,8 477,1 248
01.G11VSR250E 25 299 467,5 517,6 270
01.G11VSR260E 26 324 505,6 559,9 292
01.G11VSR270E 27 349 545,2 603,8 314
01.G11VSR280E 28 376 586,4 649,3 338
01.G11VSR290E 29 403 629 696,5 363
01.G11VSR300E 30 431 673,1 745,4 388
01.G11VSR310E 31 460 718,8 795,9 414
01.G11VSR320E 32 491 765,9 848,1 442
01.G11VSR330E 33 522 814,5 901,9 470
01.G11VSR340E 34 554 864,6 957,4 498
01.G11VSR350E 35 587 916,2 1 015 528
01.G11VSR360E 36 621 969,3 1 073 559
01.G11VSR380E 38 692 1 080 1 196 623
01.G11VSR400E 40 767 1 197 1 325 690
01.G11VSR420E 42 845 1 319 1 461 761
01.G11VSR440E 44 928 1 448 1 603 835
01.G11VSR450E 45 970 1 515 1 677 873
01.G11VSR460E 46 1 014 1 583 1 753 912
01.G11VSR480E 48 1 104 1 723 1 908 993
01.G11VSR500E 50 1 198 1 870 2 071 1 078
01.G11VSR520E 52 1 295 2 022 2 239 1 166
01.G11VSR540E 54 1 397 2 181 2 415 1 257
01.G11VSR560E 56 1 502 2 346 2 597 1 352
01.G11VSR580E 58 1 612 2 786 2 786 1 451
01.G11VSR600E 60 1 725 2 982 1 552
