Push trolley for IPE and T beams. The wheels are equipped with duration lubricated ball bearings. The hoist or lifter can be attached directly to the trolley eye with a hook or a shackle. Test certificate and Declaration of Conformity enclosed with each product.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Finish: Painted, yellow
  • Standard: EN 13157
    Select a row from the table below, then click the add to quote button

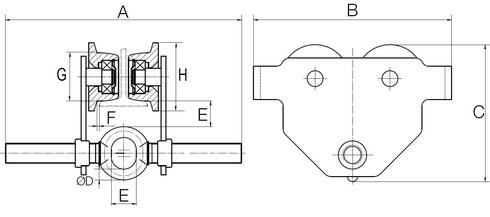

    Part Code WLL Beam width
    mm
    Min. Radius Curve
    m
    A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    H
    mm
    Weight
    SIVA05H 0,5 55-220 0,5 287 198 158 12,5 40 ~3 55 80 5
    SIVA05HL 0,5 55-305 0,5 385 198 158 12,5 40 ~3 55 80 5,4
    SIVA10H 1 58-220 0,7 300 238 183 17 31 ~3 68 96 8,8
    SIVA10HL 1 58-305 0,7 388 238 183 17 31 ~3 68 96 9,3
    SIVA20H 2 66-220 0,9 304 277 208 20 31 ~3 80 110 14
    SIVA20HL 2 66-305 0,9 405 277 208 20 31 ~3 80 110 14,8
    SIVA30H 3 74-220 1,2 328 324 249 26 31 ~3 100 132 23
    SIVA30HL 3 74-305 1,2 429 324 249 26 31 ~3 100 132 24,1
    SIVA50H 5 90-220 1 359 373 296,5 28 40 ~5 120 155 40
    SIVA50HL 5 90-305 1 435 373 296,5 28 40 ~5 120 155 41,1
