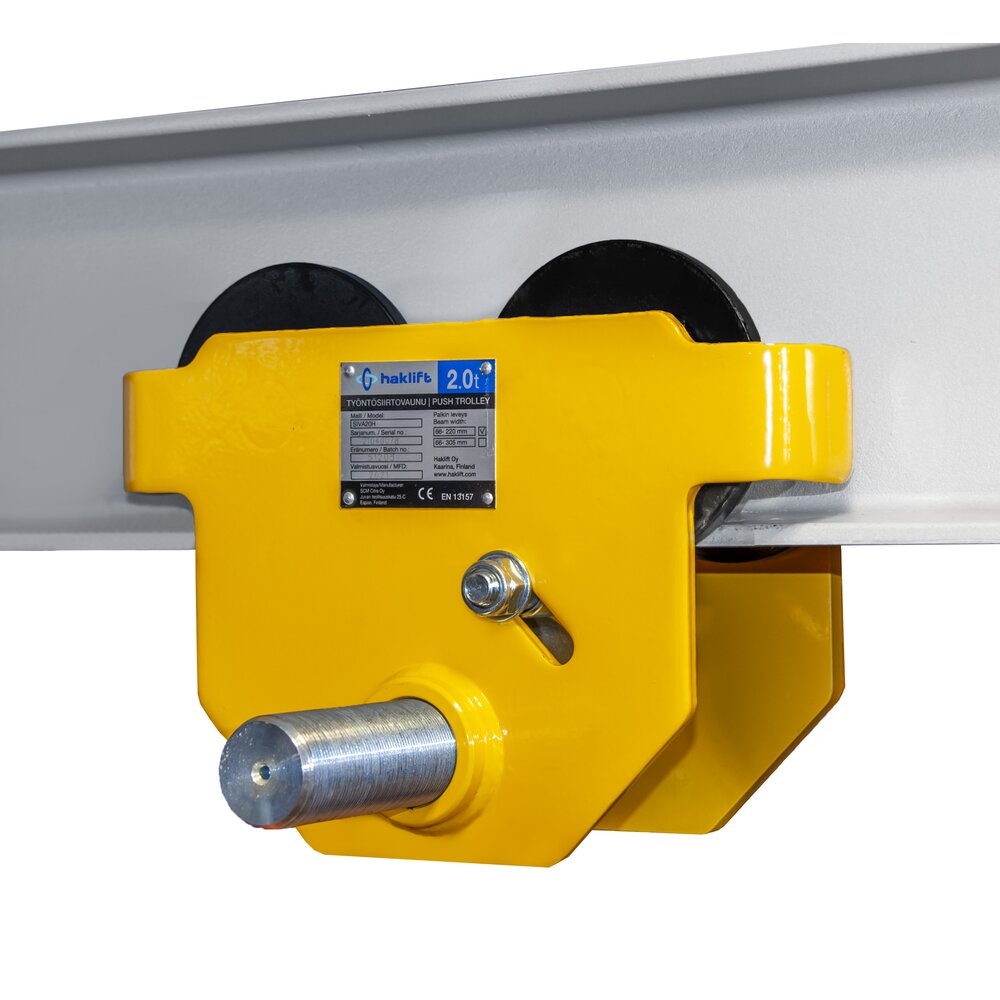

The push beam trolley with threaded spindle adjustment is a reliable solution for moving hoists and lifting devices along IPE and T-beams. The threaded spindle allows the trolley width to be adjusted to suit different beam sizes, making it suitable for a wide range of lifting systems. Permanently lubricated ball bearings ensure smooth and effortless travel, while the robust construction is designed for demanding professional use in industrial, production, and maintenance environments.
Especially suitable for
- Moving hoists and lifting devices on IPE and T-beams
- Industrial lifting and material handling applications
- Production and maintenance operations
- Lifting systems and overhead crane applications
Product features
- Adjustable beam width with threaded spindle
- Hoist or lifting device can be attached directly to the trolley eye using a hook or shackle
- Wheels fitted with permanently lubricated ball bearings
- Equipped with anti-drop plates
- Marking: According to standard, CE-marked
- Standard: EN 13157
- Safety factor: 4:1
