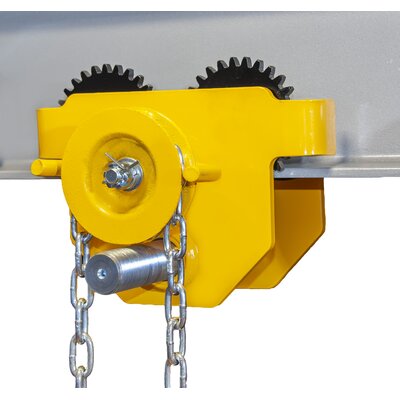

Geared trolley for IPE and T beams. The trolley moves on the beam by pulling the hand chain. The wheels are equipped with duration lubricated ball bearings. The hoist or lifter can be attached directly to the trolley eye with a hook or a shackle. Test certificate and Declaration of Conformity enclosed with each product.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Finish: Painted, yellow
  • Standard: EN 13157
    Select a row from the table below, then click the add to quote button

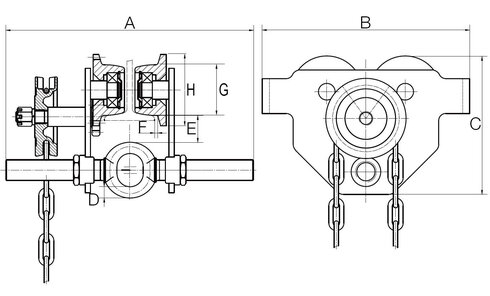

    Part Code WLL
    ton
    Beam width
    mm
    Min. Radius Curve
    m
    A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    H
    mm
    Weight
    kg
    SIVA05HKS 0,5 50-220 0,5 352,5 198 158 12,5 40 ~3 55 75 8,5
    SIVA05HLKS 0,5 50-305 0,5 437,5 198 158 12,5 40 ~3 55 75 8,9
    SIVA10HKS 1 58-220 0,7 353,5 238 183 17 31 ~3 68 95 12,5
    SIVA10HLKS 1 58-305 0,7 438,5 238 183 17 31 ~3 68 95 13
    SIVA20HKS 2 66-220 0,9 362 277 208 20 31 ~3 80 108 17
    SIVA20HLKS 2 66-305 0,9 447 277 208 20 31 ~3 80 108 17,8
    SIVA30HKS 3 74-220 1,2 406,5 324 249 26 31 ~3 100 131 28
    SIVA30HLKS 3 74-305 1,2 491,5 324 249 26 31 ~3 100 131 29,1
    SIVA50HKS 5 90-220 1 434,5 373 296,5 28 40 ~5 120 154 45
    SIVA50HLKS 5 90-305 1 519,5 373 296,5 28 40 ~5 120 154 46,1
    SIVA100HKS 10 125-203 1,3 487,5 455 490 82 36,5 ~5 - - 93
    SIVA100HLKS 10 125-305 1,3 589,5 455 490 82 36,5 −5 - - 95
    SIVA200HKS 20 136-203 4,7 523 642 622 110 54 ~5 - - 247,5
