Haklift

The clamp can be used for example to attach a hoist to an I or T beam. Test certificate and Declaration of Conformity enclosed with each product.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Finish: Painted, yellow
  • Standard: EN 13155
    Select a row from the table below, then click the add to quote button

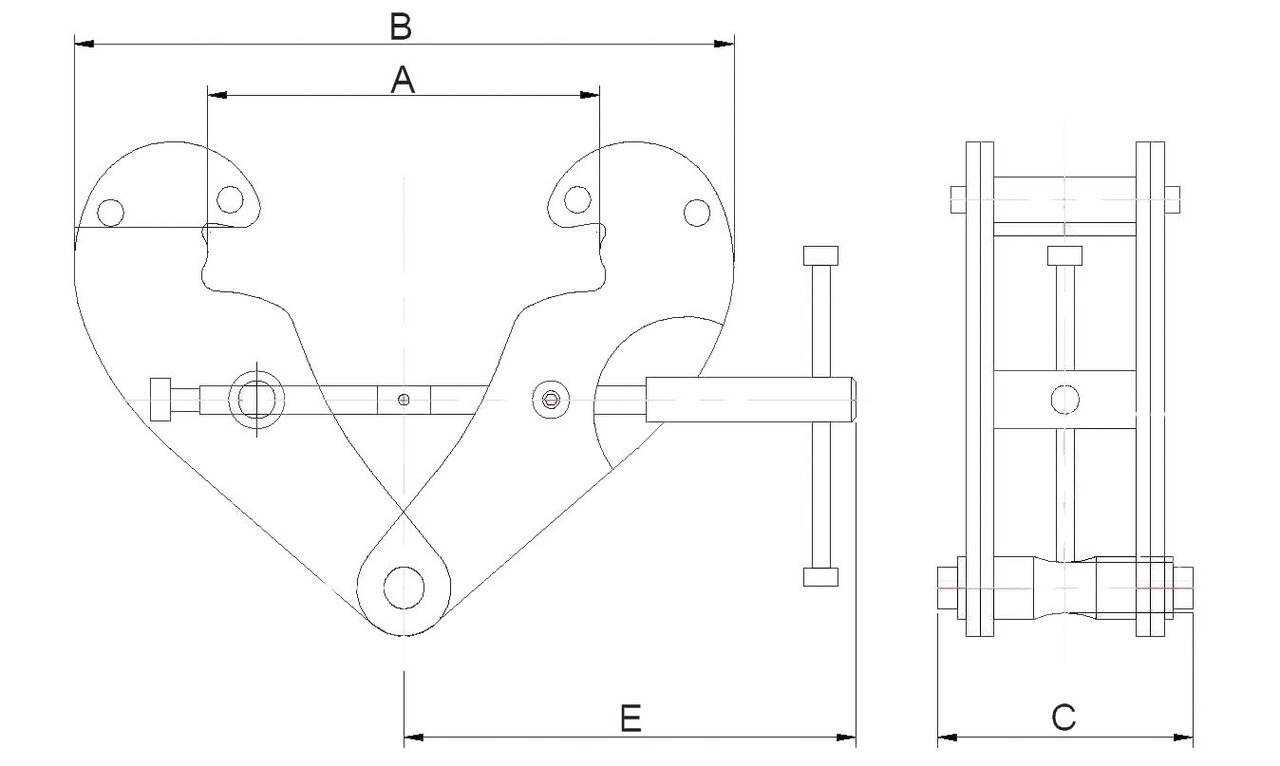

    Part Code WLL
    ton
    Beam width
    mm
    A
    mm
    B
    mm
    C
    mm
    E
    mm
    44020024F 1 75-220 75-260 180-360 64 215
    44020026F 2 75-220 75-260 180-3360 74 215
    44020027F 3 80-320 80-354 235-490 103 260
    44020028F 5 80-320 90-354 235-490 110 260
    44020025F 10 90-320 80-365 320-505 120 260
