Haklift

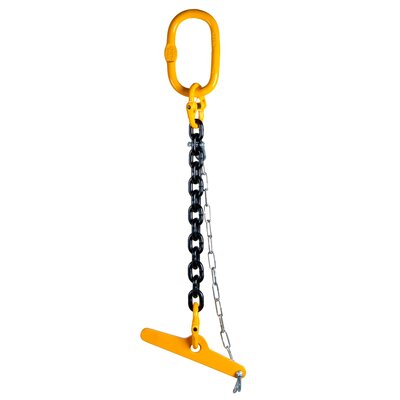

For lifting and handling cable reels. By using the reel hole, a clamp equipped with a ball bearing swivel can also be used for pulling the cable



  • Material: Steel
  • Marking: CE-marked
  • Finish: Painted, yellow
  • Warning: Not to be heat-treated
  • Safety factor: 4:1

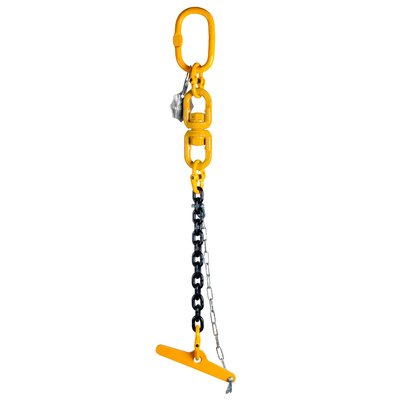

Models 44020040F and 44020041F with swivel.

Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Hole diameter
mm

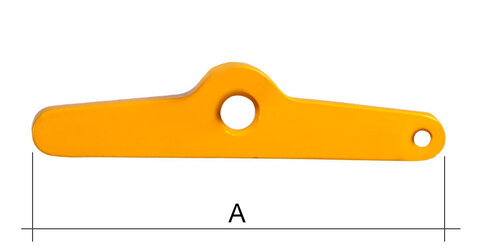

A
mm
Weight
kg
44020143F 1,5 40-90 190 1,5
44020040F 1,5 40-90 190 2
44020029F 3 50-130 225 3,6
44020041F 3 50-130 225 4,7
