Haklift

Haklift Lever Hoist is a hoist of high quality, it is durable and easy to operate using the ergonomic rachet lever. Construction is compact and light weight. The standard lifting height is 3 m. Other lifting heights are also available with fast delivery time from stock.



Features:

  • Each hoist is dynamic proof load tested 1,5 x WLL before leaving the factory
  • Sprocket wheel equipped with needle bearings and drive shaft supported by needle bearing and slide bearing inside to ensure smooth and efficient operation
  • Safe, well covered automatic load reaction brake
  • Equipped with 2 brake pawls and 4 brake springs (double safety compared to EN 13157 requirement)
  • The unique surface treatment gives excellent corrosion protection and low operating volume
  • Swivel hooks at both ends makes in line positioning easy
  • Hooks are designed to open at overload instead of breaking
  • Hooks fitted with heavy duty steel safety latches
  • Hook have Deformation Check Dots forged into side for overload detection
  • RFID equipped (chip) for easy service and inspection, HF -13,56 Mhz
  • Test certificate and Declaration of Conformity enclosed with each hoist
  • Spare parts available



  • Material: Durable all steel construction
  • Marking: According to standard, CE-marked
  • Finish: Orange / black Powder coated finish and plated frame components
  • Standard: EN 13157
  • Note: RFID equipped
Select a row from the table below, then click the add to quote button

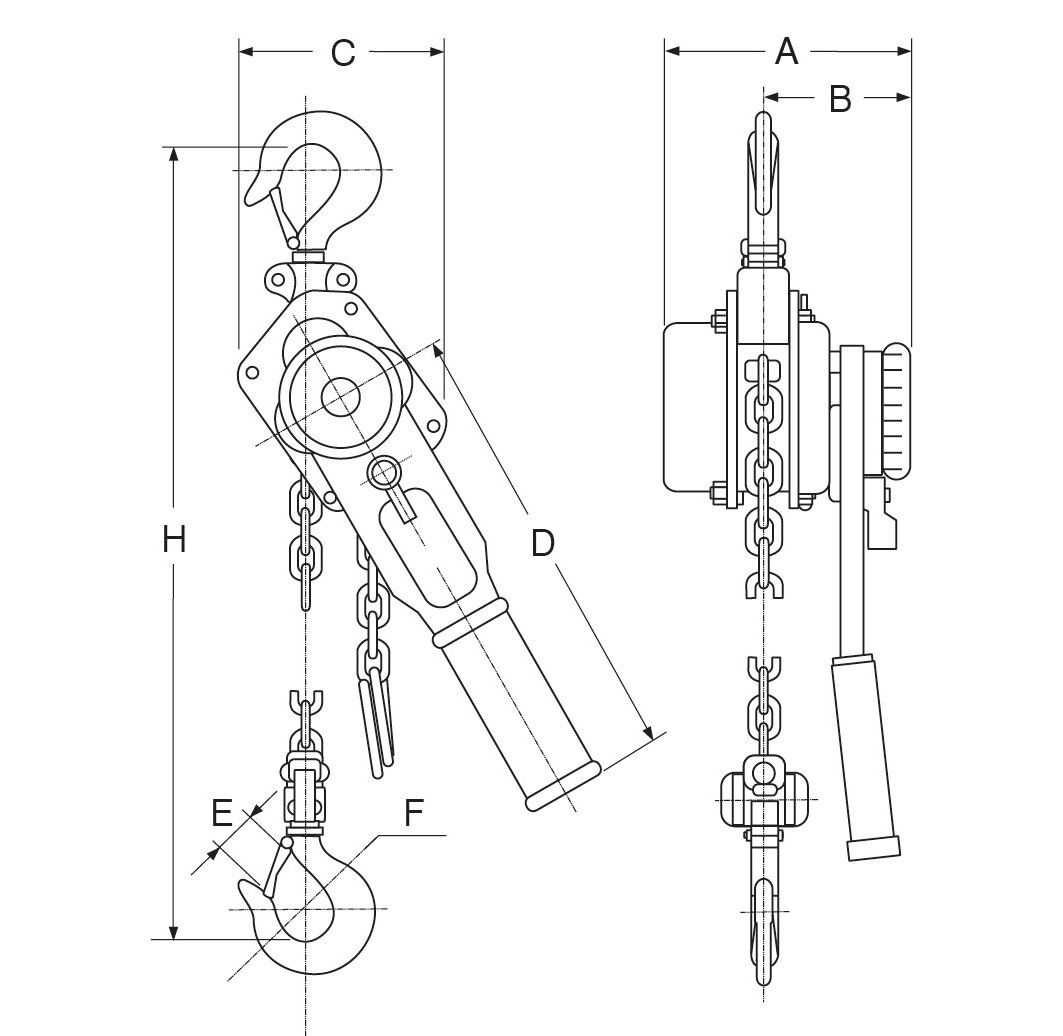

Part Code WLL Lifting height
m
Chain falls Chain diam.
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
H
mm
Weight
43040001F 0,25 3 1 4 x12 100 70 56 163 20 31 235 3
43040002F 0,5 3 1 5 x 15 150 90 118 253 22 32 310 6,3
43040003F 0,8 3 1 5,6 x 17 158 98 132 273 23 36 340 7,5
43040004F 1,6 3 1 7,1 x 21 185 111 145 378 29 43 400 11,9
43040005F 3,2 3 1 10 x 28 212 124 198 418 37 50 520 25,3
43040006F 6,3 3 2 10 x 28 212 124 230 418 43 53 640 40,6
43040007F 9 3 3 10 x 28 212 124 338 418 44 67 730 54,9
