Masterlink for 3- and 4-leg chain sling assemblies.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

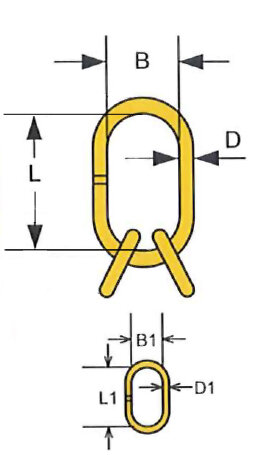

Part Code WLL
ton
For chain mm, 3-4-leg L
mm
B
mm
D
mm
B1
mm
D1
mm
L1
mm
Weight
kg
42040126F 2,4 6 135 75 18 25 14 54 1,2
42040127F 4,3 7/8 160 90 22 34 16 70 2,2
42040112F 6,7 10 180 100 26 40 18 85 3,4
42040114F 11,2 13 200 110 32 50 22 115 6
42040116F 17 16 260 140 36 65 26 140 10
42040120F 26,5 20 350 190 51 70 32 150 23,3
42040122F 32 22 350 190 51 75 36 170 25,9
42040123F 45 26 400 200 57 80 40 170 35,2
42040125F 67 32 460 250 72 190 49 357 67,6
