Masterlink for chain sling assemblies. The chain is attached with grade 100 connecting link.



  • Material: Steel
  • Marking: CE-marked
  • Temperature range: -29 - (+)205°C
  • Finish: Painted, blue
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

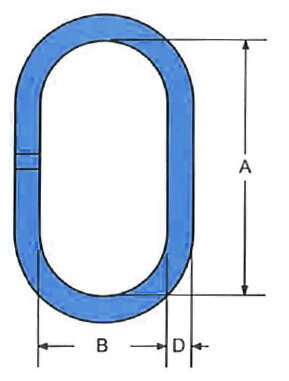

Part Code WLL
ton
For chain mm, 1-leg For chain mm, 2-leg D
mm
B
mm
A
mm
L+L1 Weight
kg
42050075F 2,1 6 6 13 60 110 0,3
42050076F 3,5 8 - 16 60 110 0,5
42050069F 5 10 8 18 75 135 0,9
42050070F 7,6 13 10 22 90 160 1,6
42050071F 10 16 13 26 100 180 2,4
42050072F 14 - 16 32 110 200 4
42050074F 25 22 20 36 140 260 6,3
42050073F 30,8 - 22 45 175 320 12
