Ropeblock

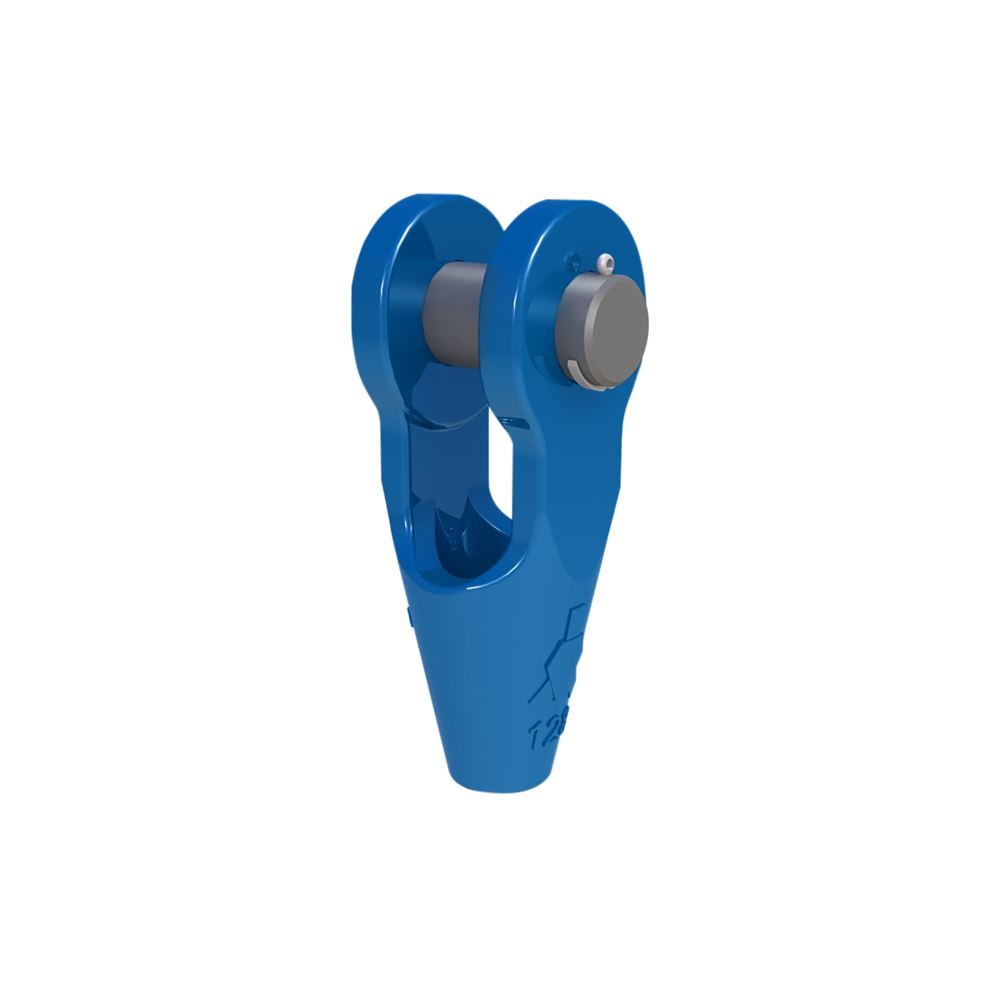

Quenched and tempered cast steel range steel wire rope sockets for embedment with cast compound with mechanical values (Charpy-V > 42 Joule /-20°C) for tough and low temperature use. For wire rope diameter 6 - 203 mm (1/4” - 8”).

2 surface finishes available:

  • Model OSS P: blue painted. (OSS 196 until OSS 100 only Hot dipped galvanized)
  • Model OSS P.GAL: Hot dipped galvanized.

Features:

  • Pin securing by cotter pin.
  • All spelter sockets have a 100% efficiency.
  • Also avaiable with pin + bolt ( type OSS B )
  • Material: Quenched and tempered cast steel
  • Marking: CE-marked, Size, wire rope diameter and batch or serial number.
  • Temperature range: From - 40°C up to +110°C - 100% capacity range.
  • Finish: OSS P: blue painted - OSS PGAL : Hot dipped galvanized.
  • Note: For intermediate rope diameter select fittings with nearest following size.
  • Warning: Compare the spelter's and the wire rope's minimum breaking load.
    Select a row from the table below, then click the add to quote button
    Part Code Code Rope diameter
    mm
    MBL
    ton
    ton
    Finish Strand Ø
    mm
    A
    mm
    B
    mm
    C
    mm
    D
    mm
    Ø H
    mm
    Ø P
    mm
    T
    mm
    TL
    mm
    TB
    mm
    W
    mm
    Weight
    kg
    10.10OSS196P OSS196P 6-7 8 Painted - 50 40 19 34 9 16 9 109 51 19 0,4
    10.10OSS197P OSS197P 8-10 12 Painted - 57 45 22 42 13 20 11 124 63 21 0,7
    10.10OSS198P OSS198P 11-13 20 Painted - 64 51 27 50 15 25 12 142 67 25 1
    10.10OSS199P OSS199P 14-16 25 Painted 13 76 63 32 58 18 30 14 171 85 32 1,8
    10.10OSS100P OSS100P 18-19 40 Painted 14-16 89 76 40 70 22 35 16 205 95 38 3
    10.10OSS104P.GAL OSS104P.GAL 20-22 55 Galvanized 18-19 101 89 45 80 25 41 19 235 110 44 4,6
    10.10OSS104P OSS104P 20-22 55 Painted 18-19 101 89 45 80 25 41 19 235 110 44 4,6
    10.10OSS108P OSS108P 23-26 75 Painted 20-22 114 101 60 104 29 51 22 275 128 51 8
    10.10OSS108P.GAL OSS104P.GAL 23-26 75 Galvanized 20-22 114 101 60 104 29 51 22 275 128 51 8
    10.10OSS111P OSS111P 27-30 90 Painted 23-26 127 114 65 114 33 57 25 306 142 57 11
    10.10OSS111P.GAL OSS111P.GAL 27-30 90 Galvanized 23-26 127 114 65 114 33 57 25 306 142 57 11
    10.10OSS115P.GAL OSS115P.GAL 31-36 125 Galvanized 27-28 139 127 72 126 39 63 28 338 155 63 15
    10.10OSS115P OSS115P 31-36 125 Painted 27-28 139 127 72 126 39 63 28 338 155 63 15
    10.10OSS118P.GAL OSS118P.GAL 37-39 150 Galvanized 30-32 152 162 80 142 42 70 30 394 177 76 22
    10.10OSS118P OSS118P 37-39 150 Painted 30-32 152 162 80 142 42 70 30 394 177 76 22
    10.10OSS120P OSS120P 40-42 170 Painted 33-35 165 165 88 156 45 76 33 418 187 76 27
    10.10OSS120P.GAL OSS120P.GAL 40-42 170 Galvanized 33-35 165 165 88 156 45 76 33 418 187 76 27
    10.10OSS125P OSS125P 43-48 225 Painted 36-40 191 178 100 176 52 89 39 469 215 89 41
    10.10OSS125P.GAL OSS125P.GAL 43-48 225 Galvanized 36-40 191 178 100 176 52 89 39 469 215 89 41
    10.10OSS128P OSS128P 49-54 280 Painted 42-45 216 228 108 194 59 95 45 552 244 101 60
    10.10OSS128P.GAL OSS128P.GAL 49-54 280 Galvanized 42-45 216 228 108 194 59 95 45 552 244 101 60
    10.10OSS130P OSS130P 55-60 360 Painted 46-48 229 254 120 210 64 108 53 603 275 113 88
    10.10OSS130P.GAL OSS130P.GAL 55-60 360 Galvanized 46-48 229 254 120 210 64 108 53 603 275 113 88
    10.10OSS132P OSS132P 61-68 425 Painted 50-54 248 273 133 236 75 121 60 654 300 127 118
    10.10OSS132P.GAL OSS132P.GAL 61-68 425 Galvanized 50-54 248 273 133 236 75 121 60 654 300 127 118
    10.10OSS135P.GAL OSS135P.GAL 69-75 460 Galvanized 56-62 279 279 138 240 81 127 73 696 335 133 155
    10.10OSS135P OSS135P 69-75 460 Painted 56-62 279 279 138 240 81 127 73 696 335 133 155
    10.10OSS138P OSS138P 76-80 560 Painted 64-67 305 286 146 252 88 133 76 737 355 146 186
    10.10OSS138P.GAL OSS138P.GAL 76-80 560 Galvanized 64-67 305 286 146 252 88 133 76 737 355 146 186
    10.10OSS140P OSS140P 81-86 625 Painted 69-76 330 298 160 290 92 140 79 788 375 159 227
    10.10OSS140P.GAL OSS140P.GAL 81-86 625 Galvanized 69-76 330 298 160 290 92 140 79 788 375 159 227
    10.10OSS142P.GAL OSS142P.GAL 87-93 720 Galvanized 78-86 356 318 178 320 99 152 83 852 400 171 283
    10.10OSS142P OSS142P 87-93 720 Painted 78-86 356 318 178 320 99 152 83 852 400 171 283
    10.10OSS144P OSS144P 94-102 875 Painted 88-96 381 343 190 350 108 178 89 914 435 191 374
    10.10OSS144P.GAL OSS144P.GAL 94-102 875 Galvanized 88-96 381 343 190 350 108 178 89 914 435 191 374
    10.10OSS146P.GAL OSS146P.GAL 108-115 1 200 Galvanized 98-110 450 480 215 400 129 195 100 1 145 465 205 539
    10.10OSS146P OSS146P 108-115 1 200 Painted 98-110 450 480 215 400 129 195 100 1 145 465 205 539
    10.10OSS150P.GAL OSS150P.GAL 120-130 1 400 Galvanized 112-124 500 500 250 450 147 220 110 1 250 525 225 761
    10.10OSS150P OSS150P 120-130 1 400 Painted 112-124 500 500 250 450 147 220 110 1 250 525 225 761
    10.10OSS155P OSS155P 135-140 1 600 Painted 125-132 540 497 263 480 157 240 140 1 300 590 230 1 067
    10.10OSS155P.GAL OSS155P.GAL 135-140 1 600 Galvanized 125-132 540 497 263 480 157 240 140 1 300 590 230 1 067
    10.10OSS160P OSS160P 142-153 2 000 Painted 133-143 585 505 275 500 171 255 140 1 365 610 250 1 172
    10.10OSS160P.GAL OSS160P.GAL 142-153 2 000 Galvanized 133-143 585 505 275 500 171 255 140 1 365 610 250 1 172
    10.10OSS165P OSS165P 154-165 2 220 Painted 144-154 630 530 300 550 185 275 150 1 460 640 260 1 441
    10.10OSS165P.GAL OSS165P.GAL 154-165 2 220 Galvanized 144-154 630 530 300 550 185 275 150 1 460 640 260 1 441
    10.10OSS170P OSS170P 166-178 2 500 Painted 155-166 680 570 310 570 199 295 150 1 560 660 280 1 615
    10.10OSS170P.GAL OSS170P.GAL 166-178 2 500 Galvanized 155-166 680 570 310 570 199 295 150 1 560 660 280 1 615
    10.10OSS175P OSS175P 180-191 2 800 Painted 167-179 725 600 325 600 213 310 155 1 650 689 300 1 907
    10.10OSS175P.GAL OSS175P.GAL 180-191 2 800 Galvanized 167-179 725 600 325 600 213 310 155 1 650 689 300 1 907
    10.10OSS180P OSS180P 192-204 3 200 Painted 180-191 775 620 345 640 229 330 160 1 740 720 320 2 239
    10.10OSS180P.GAL OSS180P.GAL 192-204 3 200 Galvanized 180-191 775 620 345 640 229 330 160 1 740 720 320 2 239
