General: Single stocking with pressed rope eye for pulling or support of ropes and cables. If the stockings are used for support, the eye will be placed on the side so the rope or cable can pass through. The eye can in both cases, on request, be provided with a thimble.
Design: Pleated double wire ropes.


  • Material: Steel wire rope – galvanized.
  • Note:  Substantial safety ratios have been applied to all quoted minimum-breaking strengths. Additional safety factors, determined by application, should be applied. Erling Haug AS recommends a mi

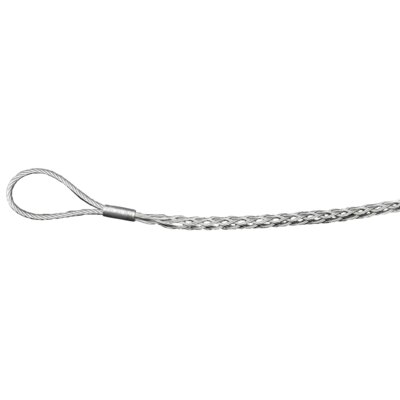

    Cable grip with eye for wire rope pulling

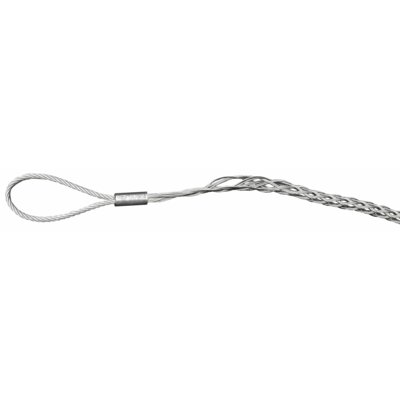

    Cable grip single support
    Select a row from the table below, then click the add to quote button
    Part Code Rope diameter
    mm
    MBL
    ton
    L
    mm
    Weight
    kg
    6-10 1,5 300 0,12
    10.4212080000 10-15 1,86 350 0,17
    10.4212080100 15-22 2,26 400 0,22
    10.4212080200 22-32 3,7 600 0,29
    10.4212080300 32-45 5,49 900 0,63
    10.4212080400 45-55 5,49 1 100 0,65
    55-70 7,32 1 350 1,2
    70-90 7,32 1 450 1,3
    90-110 10,61 1 900 2,1
    110-130 1 900 2,5
