verope
  • Right hand langs lay
  • Left hand langs lay
  • Galvanized
  • Bright
  • Compacted strands
  • Rotation resistant
  • Can be used with swivel

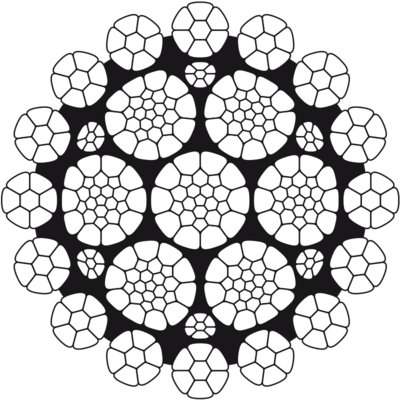

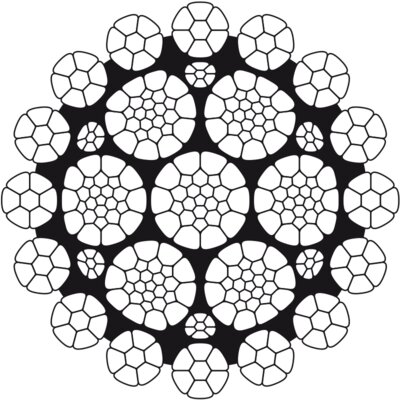

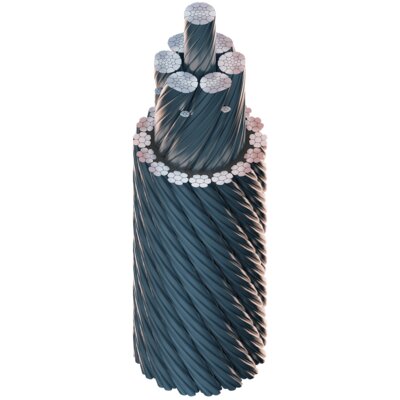

Wire rope construction: Verotop S+ is a very flexible rotation-resistant rope with compacted outer strands and extraordinary high breaking strength.

Features:

  • The strongest of all compacted rotation-resistant ropes.
  • Achieves very good bending fatigue results.
  • Offers excellent resistance to crushing and abrasion.
  • Possesses perfect spooling behavior on multilayer drum.
  • Can be used either with or without swivel.

ISO 4309 Rope Category No: All Diameters RCN.23-2

  • Marking: According to standard
  • Standard: EN 12385-4
  • Fill factor: 0.742
  • Tolerance Ø: +2% to +4%
  • Mobile crane Mobile crane wire rope
  • Crawler crane Wire for use in crawler crane
verotop S+
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
1960 N/mm²
Weight
kg/100m
01.G37VSP130G 13 98,4 179 86,7
01.G37VSP140G 14 114 208 101
01.G37VSP150G 15 131 239 115
01.G37VSP160G 16 149 271 131
01.G37VSP170G 17 168 306 148
01.G37VSP180G 18 189 343 166
01.G37VSP190G 19 210 383 185
01.G37VSP200G 20 233 424 205
01.G37VSP210G 21 257 467 226
01.G37VSP220G 22 289 513 248
01.G37VSP230G 23 308 561 271
01.G37VSP240G 24 336 611 295
01.G37VSP250G 25 364 663 321
01.G37VSP260G 26 394 717 347
01.G37VSP270G 27 425 773 374
01.G37VSP280G 28 457 831 402
01.G37VSP290G 29 490 891 431
01.G37VSP300G 30 524 954 462
01.G37VSP310G 31 560 1 019 493
01.G37VSP320G 32 596 1 085 525
01.G37VSP330G 33 634 1 154 559
01.G37VSP340G 34 673 1 225 593
01.G37VSP350G 35 714 1 298 628
01.G37VSP360G 36 755 1 374 665
01.G37VSP380G 38 841 1 531 741
01.G37VSP400G 40 932 1 696 821
