• Not for lifting
  • Ordinary right hand lay
  • Galvanized
  • Not to be used with swivel

ROPETEX S42 is a galvanized rope equipped with a Fibre Core (FC) and has a PVC coating. It can be used for various applications such as locking rope, signaling devices, etc but not for lifting. lt's most used in small diameters up to 8 mm.

Available with transparent, matt black or a matt Red (RAL 3020) PVC coating.

The PVC coating is UV stabilized which makes it suitable for longterm outdoor use and it is fully compliant with REACH Directive 1907/2006.

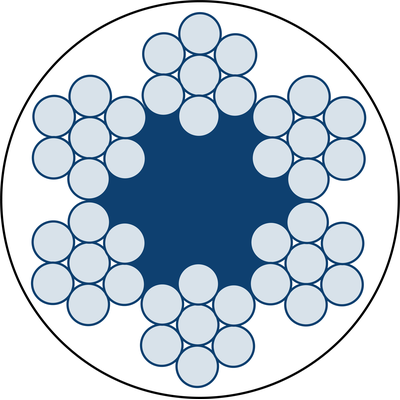

  • Rope construction: 6x7 FC
  • Marking: According to standard
  • Temperature range: -30°C up to +70°C
  • Standard: EN 12385-4
    except from coating
  • Warning: Not to be used for lifting purposes
  • Fill factor: 0,47
  • General use Wire for general use
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Inner diameter
mm
Tensile strength
N/mm²
Steel Area
mm²
Min. breaking force
kN
Colour Weight
kg/100m
105130300200010 3 2 1 770 1,48 2,35 transparent 2,1
105130400200010 4 2 1 770 1,48 2,35 transparent 2,7
105130400300014 4 3 1 770 1,48 2,35 Black 4,1
105130400300010 4 3 1 770 1,48 2,35 transparent 4,1
105130400300012 4 3 1 770 1,48 5,29 Red 4,1
105130500300010 5 3 1 770 3,32 5,29 transparent 5,3
105130500300012 5 3 1 770 2,32 5,29 Red 5,3
105130500400012 5 4 1 770 2,32 9,4 Red 6,9
105130600400010 6 4 1 770 9,23 14,7 transparent 8,3
105130600500010 6 5 1 770 9,23 14,7 transparent 10
105130700500010 7 5 1 770 9,23 14,7 transparent 12,1
105130800600010 8 6 1 770 13,3 21,2 transparent 15,2
