Haklift

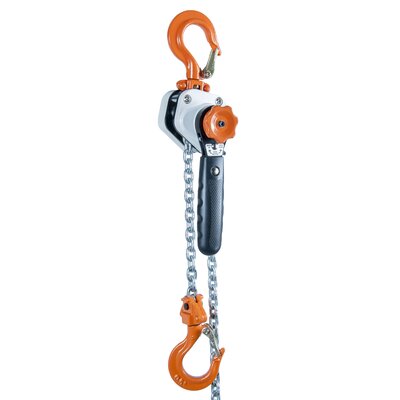

Quality and extra small lever hoist for professional use with a standard lifting height of 3 meters. Hooks are equipped with swivels. Other lifting heights are available with short lead times from the stock upon request. The hoist can also be used as a puller.



  • Material: Aluminum
  • Marking: CE-marked
  • Finish: Painted, white / orange
  • Note: 250, 500 and 750 hoist with carry-on bags
    Select a row from the table below, then click the add to quote button

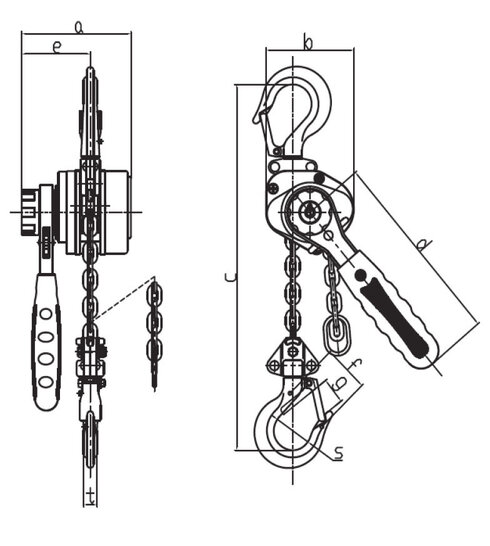

    Part Code WLL
    ton
    Lifting height
    m
    Chain falls Chain diam.
    mm
    a
    mm
    b
    mm
    c
    mm
    d
    mm
    e
    mm
    f
    mm
    g
    mm
    s
    mm
    t
    mm
    Weight
    kg
    43040074F 0,25 3 1 3,2 x 9 87 68 200 145 55,5 35,5 21 32 11 2,2
    43040075F 0,5 3 1 4,3 x 12 100,5 81 250 160 62,5 42 24,5 34,5 12 3,6
    43040076F 0,75 3 1 5 x 15 105 92 260 180 64 42 28,5 35,5 14 4,7
    43040020F 1,5 3 1 7,1 x 19,9 122 109 330 220 68,5 52 35 42,5 21,5 8,5
    43040081F 3 3 2 7,1 x 19,9 122 160 432 220 68,5 61,9 43 50 24,5 12,4
