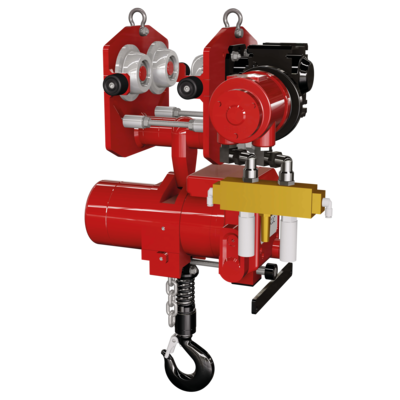

RED ROOSTER Air Chain Hoist with build on Pneumatic Trolley for loads from 250 up to 2000 kg. The TCR-series are especially developed for heavy industrial use. Robust cast steel body. The TCS-series are high speed hoists especially developed for material handling, with aluminum housing.

Standard features:

  • Precise variable speed control (cord- and pendant control).
  • Optimum control of the load, very precise positioning.
  • 4 button pendant control maneuvering both hoist and trolley
  • Compact design.
  • Endstop system.
  • Load limiter built-in without loss of headroom.
  • 4-wheel trolley.
  • Trolley to suit various flange profiles.
  • Wheel profile to suit parallel or tapered flanges.
  • Anti-tilt & anti-drop plates.
  • Low noise level.
  • Air pressure 0,4 - 0,63 MPa (4 - 6,3 Bar).

Optional:

  • Marine Specification/Corrosion resistant
  • Paint systems from C2 - Industrial to C5 - Offshore specification (Red finish as standard. Other RAL colours available on request).
  • Choice of pendants.
  • Radio control pendant for electro pneumatic controls.
  • Control systems.
  • Chain collectors (PVC, galvanised or stainless steel).
  • Various types of hook or clevis available.
  • Air supply systems and valves.
  • Air Service unit.
  • Piped away exhaust air.
  • In house design for "specials".
  • Festoon systems.
  • Main air shut off valve.

ATEX:

  • According to EC Directive 94/9/EC (Ex Classification)

Recommended:
We highly recommend the use of an SMC air treatment unit.
(Sold separately.)

      Select a row from the table below, then click the add to quote button

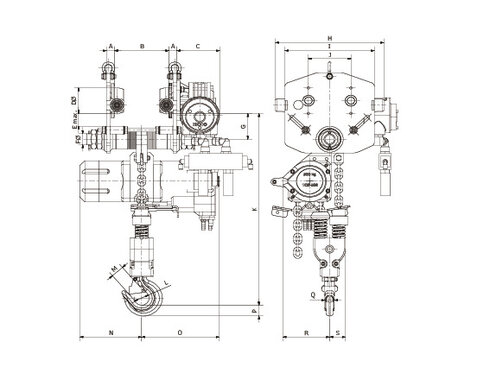

      Part Code WLL
      ton
      Chain falls Lifting speed without load
      m/min
      Lifting speed with load
      m/min
      Weight with 3m HOL minimum hose diam " hose Air consumption lifting l/sec A
      mm
      B
      mm
      C
      mm
      D Ø E
      mm
      F Ø G
      mm
      H
      mm
      I
      mm
      J
      mm
      K
      mm
      L Ø M
      mm
      N
      mm
      O
      mm
      P
      mm
      Q
      mm
      R
      mm
      S
      mm
      16.30TCR-250-AT2S 0,25 1 19 9,3 32 1/2" 15 21 TBC 135 70 35 35 71 285 235 112 350 36 22 112 140 15 20 70 22
      16.30TCR-500-AT2S 0,25 1 20,5 10,5 31 1/2" 25 21 TBC 135 70 35 35 71 285 235 112 525 40 29 156 186 29,5 25 113 20
      16.30TCR-500/2-AT2S 0,5 2 9,5 4,6 34 1/2" 15 21 TBC 135 70 35 35 71 285 235 112 390 35 25 112 140 25 18 87,5 32,5
      16.30TCS-500-AT2S 0,5 1 33 17 41 1/2" 28 21 TBC 135 70 35 35 71 285 235 112 450 36 22 163 205 15 20 100 18,5
      16.30TCR-1000/2-AT2S 1 2 9,5 5,3 35 1/2" 25 21 TBC 135 70 35 35 71 285 235 112 560 40 29 156 186 29,5 25 147 42
      16.30TCR-1000-AT2S 1 1 11,3 6 34 1/2" 25 21 TBC 135 70 35 35 71 285 235 112 525 40 29 156 186 29,5 25 116 23
      16.30TCS-980/2-AT2S 1 2 16 8,5 45 1/2" 28 21 TBC 135 70 35 35 71 285 235 112 530 40 23 163 205 30 25 123 42
      16.30TCR-2000/2-AT2S 2 2 5,7 3 40 1/2" 25 21 TBC 135 70 35 35 71 285 235 112 645 45 29 155 185 37 30 140 55
