Connecting link is used for connecting short link grade 80 chains to different components in a lifting sling.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

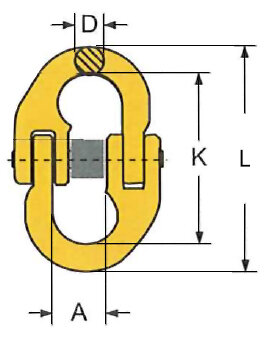

Part Code WLL
ton
For chain dia.
mm
L
mm
K
mm
A
mm
D
mm
Weight
kg
42040044F 1,12 6 58 42 15 7 0,08
42040046F 2 7/8 79 60 18 8 0,146
42040034F 3,15 10 90 68 25 11 0,3
42040036F 5,3 13 117 87 29 15 0,65
42040038F 8 16 148 108 34 19 1,15
42040040F 12,5 20 154 121 41 24 2,1
42040041F 15 22 193 141 48 26 2,87
42040042F 21,2 26 220 158 57 30 4,5
42040043F 31,5 32 281 205 67 37 8,21
