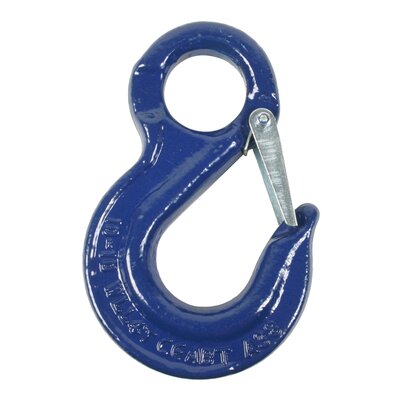

Hook is equipped with spring loaded safety latch.



  • Material: Steel
  • Marking: CE-marked
  • Temperature range: -29 - (+)205°C
  • Finish: Painted, blue
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

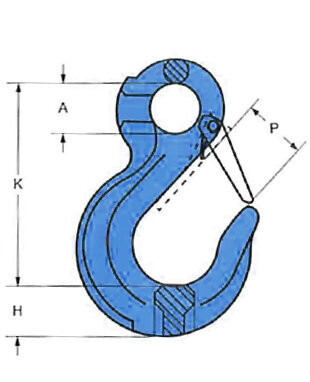

Part Code WLL
ton
For chain dia.
mm
P
mm
A
mm
K
mm
H
mm
Weight
kg
42050113F 1,4 6 18 20 80 21 0,32
42050124F 2,5 8 25 25 98 27 0,6
42050114F 4 10 28 34 120 33 1,2
42050116F 6,7 13 38 43 152 43 2,2
42050118F 10 16 44 50 183 50 3,5
42050121F 16 20 52 55 217 56 7,15
42050122F 19 22 66 60 241 62 11,5
