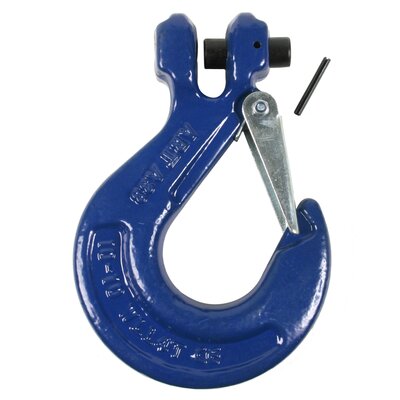

Hook is equipped with spring loaded safety latch. Attachment directly to the chain with clevis link.



  • Material: Steel
  • Marking: CE-marked
  • Temperature range: -29 - (+)205°C
  • Finish: Painted, blue
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

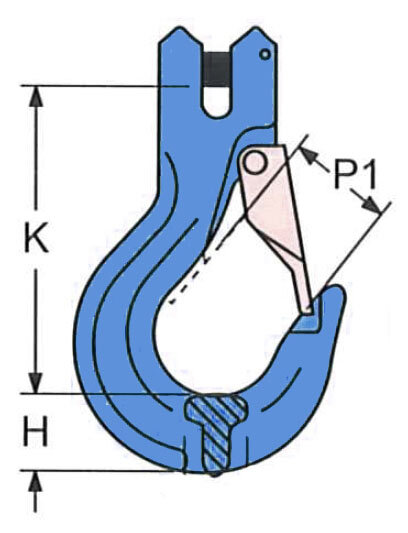

Part Code WLL
ton
For chain dia.
mm
P1
mm
H
mm
K
mm
Weight
kg
42050126F 1,4 6 18 21 75 0,33
42050137F 2,5 8 25 27 85 0,7
42050127F 4 10 28 33 104 1,3
42050129F 6,7 13 38 42 128 2,3
42050132F 10 16 44 50 150 3,6
42050134F 16 20 52 56 180 7,3
42050135F 19 22 66 62 213 12,1
