Red Rooster

Highspeed air chain hoist for loads from 500 up to 980 kg.
RED ROOSTER Air Chain Hoists are especially developped for the "Material Handling Industry". For example: warehousing, packaging etc.
These hoists have a very high lifting and lowering speed, making them very suitable for applications with long lifting heights.

  • Very high lifting and lowering speeds
  • Maximum speed adjustable, lifting and lowering speed independent from each other.
  • Precise variable speed control (cord - and pendant control).
  • Optimum control of the load, very precise positioning.
  • Compact and light weight.
  • Exhaust hose easy to assemble
  • Endstop system
  • Air motor is cooled by the exhaust air (internal)
  • Cord control or pendant control
  • Low noise level
  • Aluminum housing

Optional:

  • Marine Specification/Corrosion resistant
  • Paint systems from C2 - Industrial to C5 - Offshore specification (Red finish as standard. Other RAL colours available on request).
  • Choice of pendants.
  • Radio control pendant for electro pneumatic controls.
  • Control systems.
  • Chain collectors (PVC, galvanised or stainless steel).
  • Various types of hook or clevis available.
  • Air supply systems and valves.
  • Air Service unit.
  • Piped away exhaust air.
  • In house design for "specials".
  • Festoon systems.
  • Main air shut off valve.

ATEX:

  • According to EC Directive 94/9/EC (Ex Classification)

Recommended:
We highly recommend the use of an SMC air treatment unit. (Sold separately.)

  • Features: Very high lifting and lowering speeds.

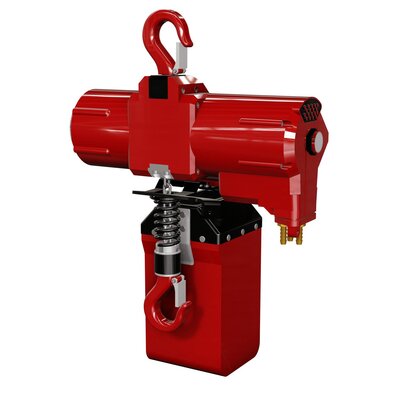

    Product Image 2
    Select a row from the table below, then click the add to quote button
    Part Code WLL
    ton
    Type Load chain Ø
    mm
    Chain falls Air consumption lifting (l/sec) Air consumption lowering (I/sec) Lifting speed with max.load
    m/min
    Lowering speed with max.load
    m/min
    Air connection Workingpressure
    bar
    Weight at 3m HOL
    kg
    Lifting speed without load
    m/min
    Min. Hosediam.
    16.30TCS-500C 0,5 TCS-500C 6.3x19.1 1 28 33 17 34 1/2"BSPT 6 19 33 1/2"
    16.30TCS-500PE 0,5 TCS-500PE 6.3x19.1 1 28 33 17 34 1/2"BSPT 6 19 33 1/2"
    16.30TCS-980C2 0,98 TCS-980C2 6.3x19.1 2 28 33 8,5 17 1/2"BSPT 6 24 17 1/2"
    16.30TCS-980P2E 0,98 TCS-980P2E 6.3x19.1 2 28 33 8,5 17 1/2"BSPT 6 24 17 1/2"

    Also available in oil free version upon request.

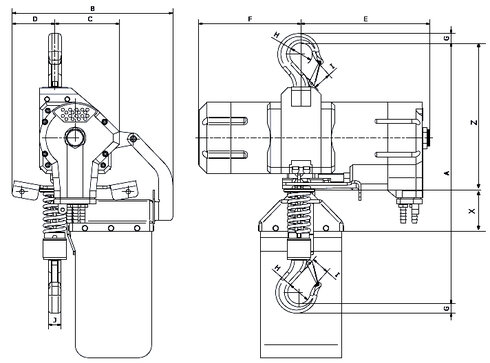

    Type
    A
    B
    C
    D
    E
    F
    G
    I
    J
    X
    Z

    mm











    TCS-500C / TCS-500PE
    415
    255
    13
    68
    205
    163
    15
    35
    22
    22
    40
    210
    TCS-980C2 / TCS980P2E
    510
    205
    123
    37
    163
    205
    30
    40
    29
    25
    40
    225
