Terrier

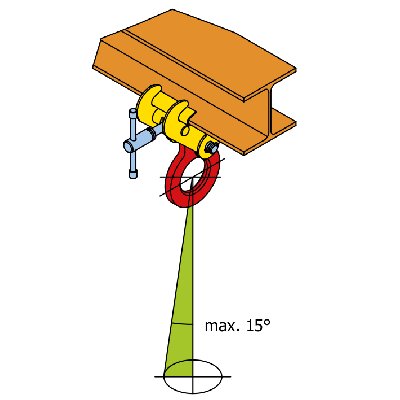

Beam clamp for horizontal lifting and transporting of steel beams and structures. Can also be attached upside down and be used as a (temporary) lifting point. Various models available:

  • FSV standard clamp
  • FSVS clamp with enlarged jaw opening

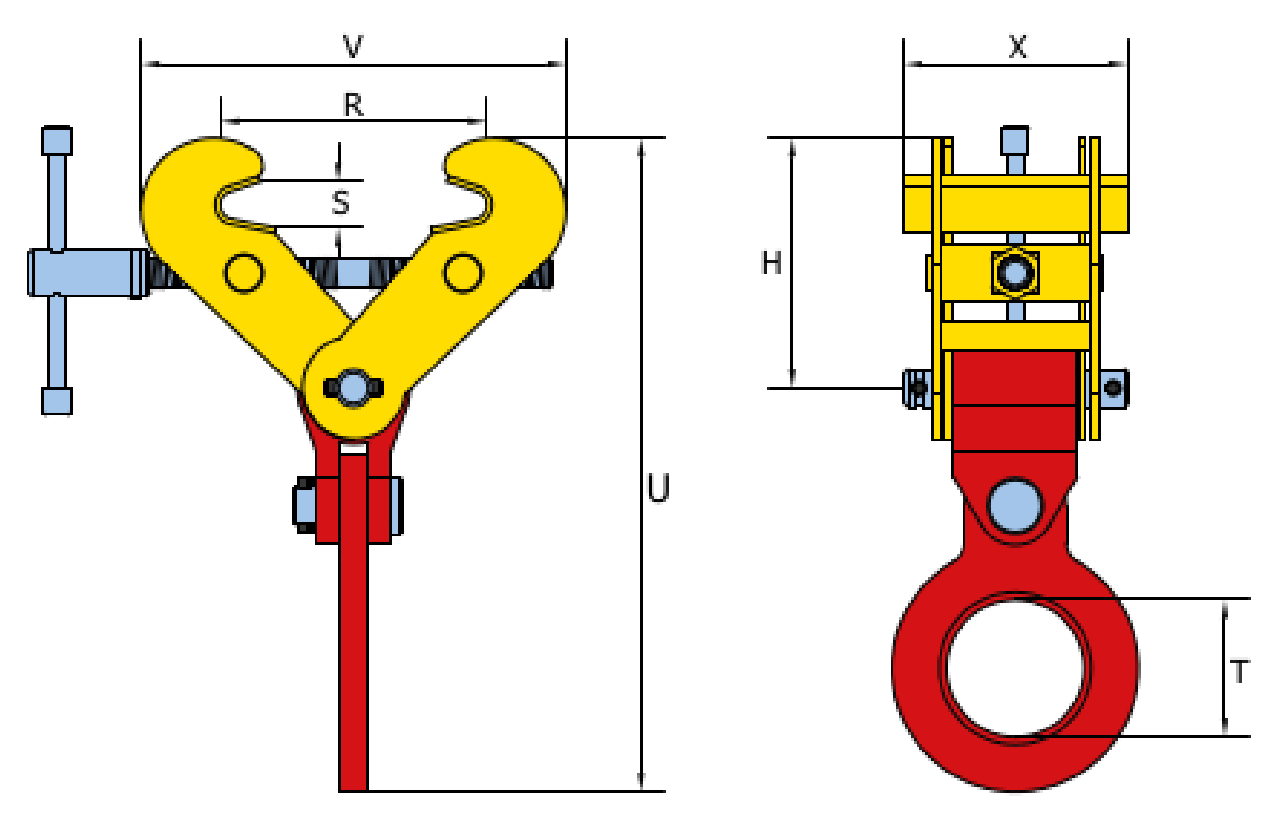

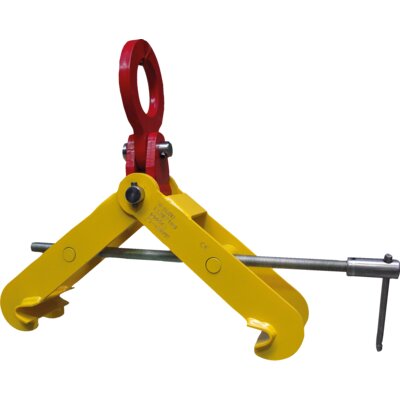

  • FSVSU clamp with enlarged opening, reinforced body and articulated lifting eye.

Features:

  • Equal opening and closing of both jaws for simple and quick assembly
  • Welded jaw plates for better positioning and less damaging of load
  • Lightweight, maintenance-friendly, heavy duty body
  • Marking: According to standard, CE-marked, Type, serial number, WLL, Jaw opening.
  • Temperature range: - 40°C to +100°C.
  • Standard: EN 13155
Select a row from the table below, then click the add to quote button

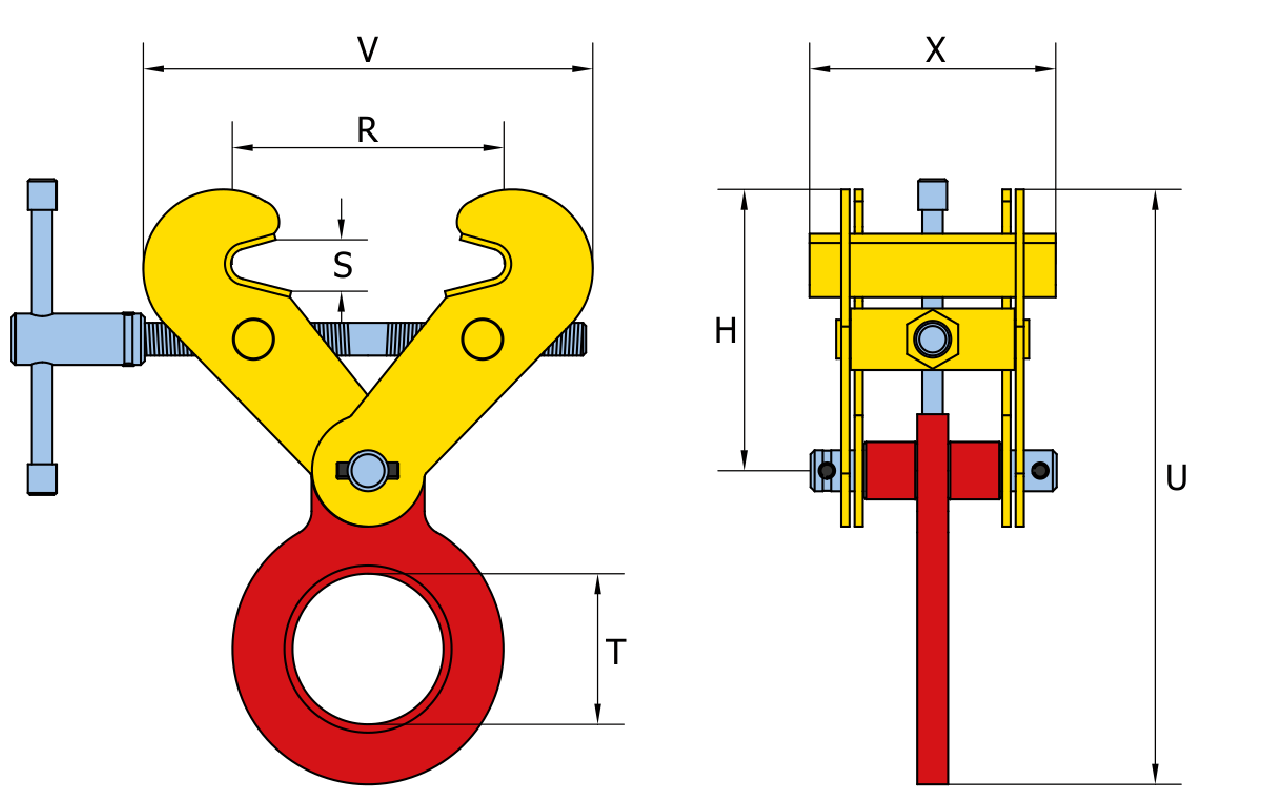

Part Code Code WLL
ton
Beam width
mm
S
mm
T
mm
V-max U-max H
mm
X
mm
Weight
kg
16.02851400 1 FSV 1 75-190 30 73,5 357 345 113-192 120 5
16.02851500 2 FSV 2 75-190 30 73,5 357 345 113-192 120 5
16.02962000 2 FSVS 2 75-420 30 73,5 540 428 114-275 120 7
16.02851600 3 FSV 3 75-190 30 73,5 357 345 113-192 120 5
16.02963000 3 FSVS 3 75-420 30 73,5 540 428 114-275 120 7
16.02956300 3 FSVSU 3 75-420 30 73,5 540 486 114-275 120 8
16.02851700 4 FSV 4 150-300 40 80 450 422 185-240 180 15
16.02964000 4 FSVS 4 150-560 40 80 708 545 173-362 180 18
16.02956400 4 FSVSU 4 150-560 40 80 708 613 173-362 180 21
16.02851800 5 FSV 5 150-300 40 80 450 422 185-240 180 15
16.02965000 5 FSVS 5 150-560 40 80 708 545 173-362 180 19,5
16.02956500 5 FSVSU 5 150-560 40 80 708 622 173-362 180 22
16.02851110 10 FSV 10 350-450 95 88 695 653 400-447 200 50
