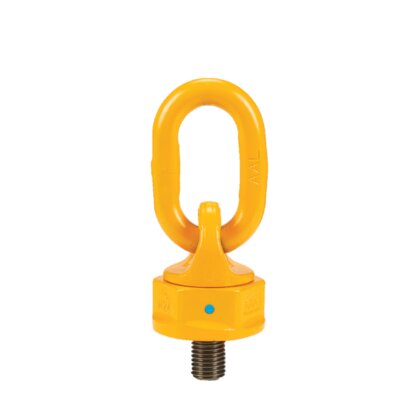

Swivel Point 8-271

  • Swings more than 180°, rotates through 360° due to its unique ball bearing design. Secured four times against breakage in all load directions.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 1.5 times the WLL.
  • Exceed all the requirements of ASME B30.26.
  • Easy to measure disposal stage by using with the new WLL tables.
  • Easy to attach or dismantle due to the forged hexagon shaped body of the Super Point.
  • Maximum WLL in axial direction when load ring is aligned.
  • Capable of rotating under load. Do not turn continuously in 90 degree direction at full load.
  • Material: Forged alloy steel, quenched and tempered.
  • Marking: According to standard, CE-marked
  • Finish: Painted.
  • Standard: EN 1677-1
  • Note: Capable of rotating under load. Do not turn continuously in 90 degree direction att full load.
  • Safety factor: 4:1
