Kito

General: The KITO EQ electric chain hoist is a small and powerful chain hoist with hanging suspension, aluminium die-cast body, heavy duty fan-cooled motor and a plastic chain container.
High productivity feature: 130% speed at less than 30% WLL.

Standard configuration:

  • Frequency inverter
  • 380 - 460 V/3 phase
  • Overload protection via frequency inverter
  • Counter hour meter
  • Upper - lower limit switch
  • Pull-rotor motor brake
  • Nickel plated load chain class grade 80 (DAT) in accordance with Norm EN 818-7
  • Plastic chain container
  • Ergonomic push button control
  • Control voltage 24 V DC
  • Aluminium die-cast body small, light, rugged
  • High duty rating FEM 3m / ISO M6 rating through 500 kg


Options:

  • Plain and geared trolley
  • Motorized trolley (inverter controlled - dual speed)
  • Top hook




  • Note: Maximum lift with chain bag is (125kg - 500kg) 15m, (1t) 6m.

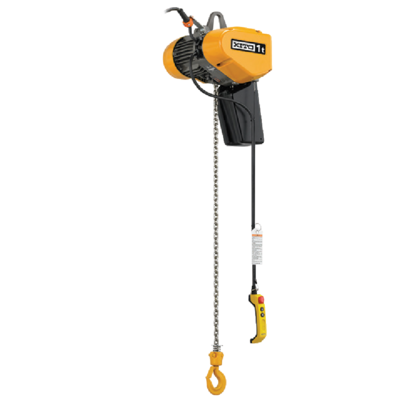

    EQ frontal view
    EQ mit Elektrofahrwerk
    Select a row from the table below, then click the add to quote button
    Part Code Code WLL
    ton
    Lifting height
    m
    Load chain Ø
    mm
    Chain falls Class FEM Traversing motor Output kW Traversing motor Rating% ED Lifting speed m/min. High (light load) 0-30 % WLL Lifting speed m/min. High 30-100 % WLL Head room
    mm
    Entire length mm Weight
    kg
    13.05EQ001IS06 EQ001IS 0,125 6 5,6x15,7 1 3m 0,5 40 / 20 22,1 17,0 395 417 30
    13.05EQ003IS06 EQ003IS 0,25 6 5,6x15,7 1 3m 0,5 40 / 20 13,0 10,0 395 417 30
    13.05EQ005IS06 EQ005IS 0,5 6 5,6x15,7 1 3m 0,75 40 / 20 9,9 7,6 410 417 32
    13.05EQ010IS06 EQ010IS 1 6 7,1x19,9 1 2m 1,5 40 / 20 9,2 7,1 465 433 42
    The last two digits in the article number indicates the lifting height.

    Technical data EQ with motorized trolley



    Type
    Traversing motor

    Traversing speed* (m/min)


    Flange width B (mm)

    Min. radius curve

    Output (kW)
    Rating (%ED)

    50Hz High
    50Hz Low
    Standard
    Option
    (mm)
    EQM1001IS-IS
    0,4
    27/13
    Standard
    24
    4
    58 to 163
    164 to 305
    800
    EQM1003IS-IS
    0,4
    27/13
    Standard
    24
    4
    58 to 163
    164 to 305
    800
    EQM1005IS-IS
    0,4
    27/13
    Standard
    24
    4
    58 to 163
    164 to 305
    800
    EQM1010IS-IS
    0,4
    27/13
    Standard
    24
    4
    58 to 163
    164 to 305
    800
    * Adjustable traversing speed 24/2,4
