Red Rooster

Air chain hoist for material handling 140 and 250 kg.
These types RED ROOSTER Compact Hoist are very suitable for "Material-Handling". The pendant control is direct on the lower hook so the operator can control and position the load easy and direct. The perfect solution for horizontal movements is the combination with a push trolley.

Standard features:

  • Pendant control direct on the lower hook.
  • Optimum load control, very precise positioning.
  • One-hand control.
  • Variable speed control.
  • Soft start and stop, no shock movements.
  • Handle can be positioned for left-hand or righthand operation.
  • Endstop system.
  • 2 meter of lift. (Only for TMM-140AE)

We highly recommend the use of an SMC air treatment unit.
(Sold separately.)

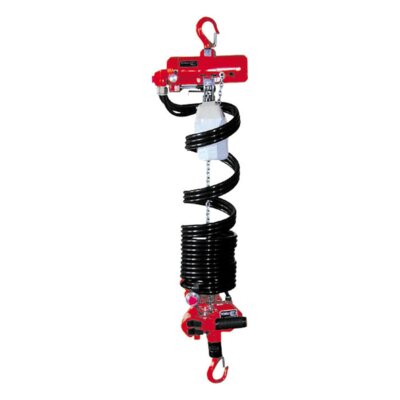

      Product Image 1
      Product Image 2
      Select a row from the table below, then click the add to quote button
      Part Code WLL
      Lifting height
      Type Lowering speed with load
      Air consumption lowering (I/sec) Lifting speed with max.load
      Weight at 3m HOL
      Lifting speed without load
      Air consumption (l/sec) Number of falls
      16.30TMM-140AE 0,14 2 TMM-140AE 15 11 11 9 15 8 1
      16.30TCR-250ME 0,25 3 TCR-250ME 16 13 8 11 19 11,7 1
