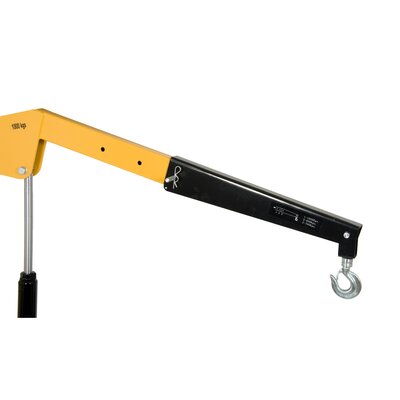

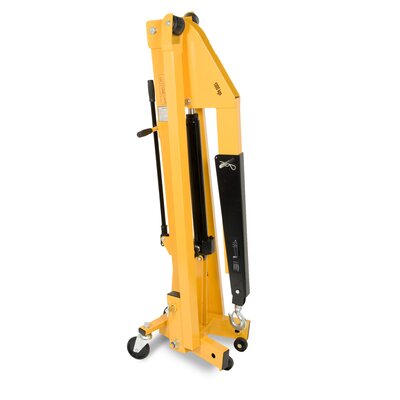

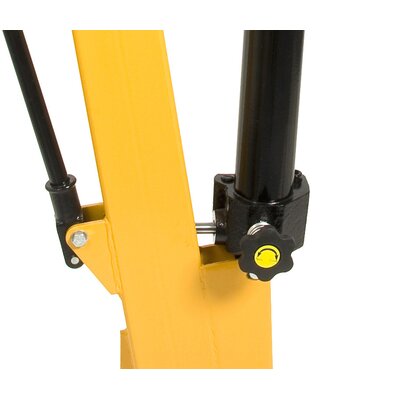

Lifting bar can be adjusted longitudinally. Equipped with overload protection and chrome coated cylinders. Beam is foldable, so it can be transported for example in a van.
  • Material: Steel
  • Marking: CE-marked
  • Finish: Painted, yellow
    Select a row from the table below, then click the add to quote button

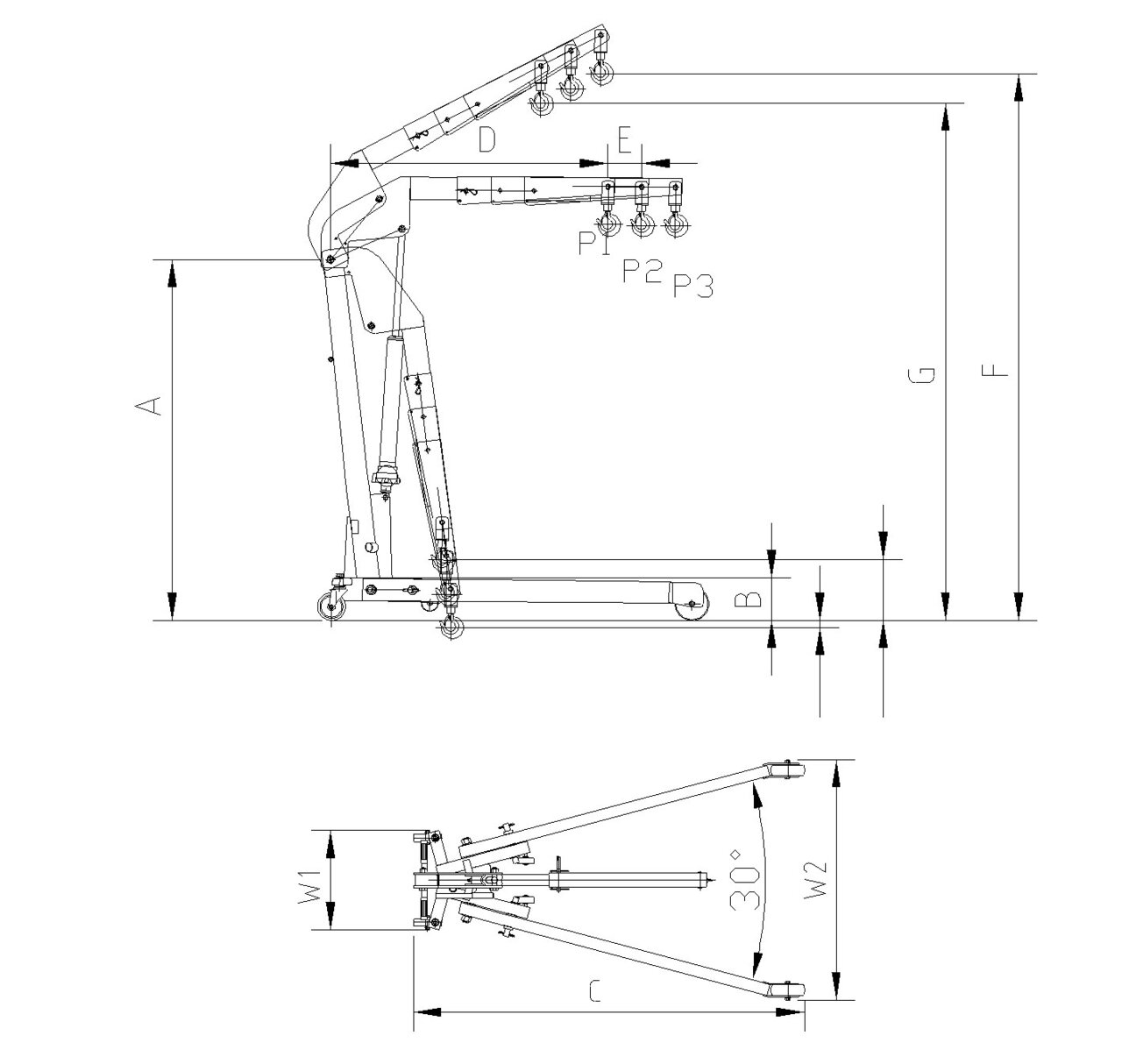

    Part Code WLL A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    W1 W2 Weight
    PUNOS500PROKT 0,5 1 410 165 1 510 895 102 2 120 1 960 460 948 75
    PUNOS1000PROKT 1 1 597 90 1 749 1 231 150 2 450 2 320 460 1 100 115
    PUNOS2000PROKT 2 1 626 208 1 911 1 293 150 2 490 2 330 590 1 170 165
    Max load at different jib lengths (kg) P1 P2 P3
    PUNOS500PROKT 500 425 350
    PUNOS1000PROKT 1000 800 700
    PUNOS2000PROKT 2000 1700 1500
