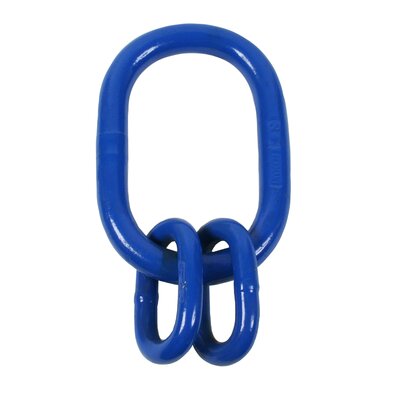

Masterlink for 3- and 4-leg chain sling assemblies.

The chain is attached with grade 100 connecting link.

  • Material: Steel
  • Marking: CE-marked
  • Temperature range: -29 - (+)205°C
  • Finish: Painted, blue
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

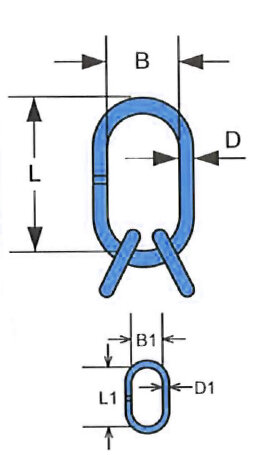

Part Code WLL
ton
For chain mm, 3-4-leg WLL 45- 60°
ton
D
mm
B
mm
L
mm
L+L1 Weight
kg
42050097F 3,15 6 2,25 18 75 153 207 1,1
42050098F 5,3 8 3,75 22 90 182 252 2,2
42050085F 8 10 6 26 100 206 291 3,4
42050093F 14 13 10 32 110 232 347 6,1
42050094F 21 16 15 36 140 296 436 9,9
42050095F 33,6 20 24 45 180 430 670 26,5
42050096F 42 22 30 50 200 480 800 32,8

WLL ton is 0-45º
