• The product is equipped with RFID chip

Insulated blank swivel for various lifting applications. Design for protection of overhead crane during welding operations on suspended loads. Individually tested to resist 1000 Volts insulated with Test Certificate.

For connection with suspension parts you will need Coupling Pin and C-Sleeve Set X-P015, please order them separately.

Order suspension parts Coupling Master Link 8-051.

2 pcs. half coupling links can be ordered as 1 pc. X-015 + 1 pc. X-P015.
Other suspension parts on request.

  • Features: Built-in RFID/NFC chip
  • Material: Quenched and tempered alloy steel
  • Marking: According to standard
  • Standard: EN 1677-1
  • Safety factor: 4:1
  • Grade: 8

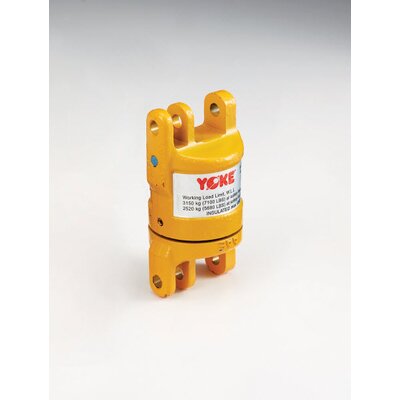

Yoke 8-088N Insulated Blank Swivel
Yoke 8-123 Insulated Swivel complete with 8-054 and 8-088N swivel

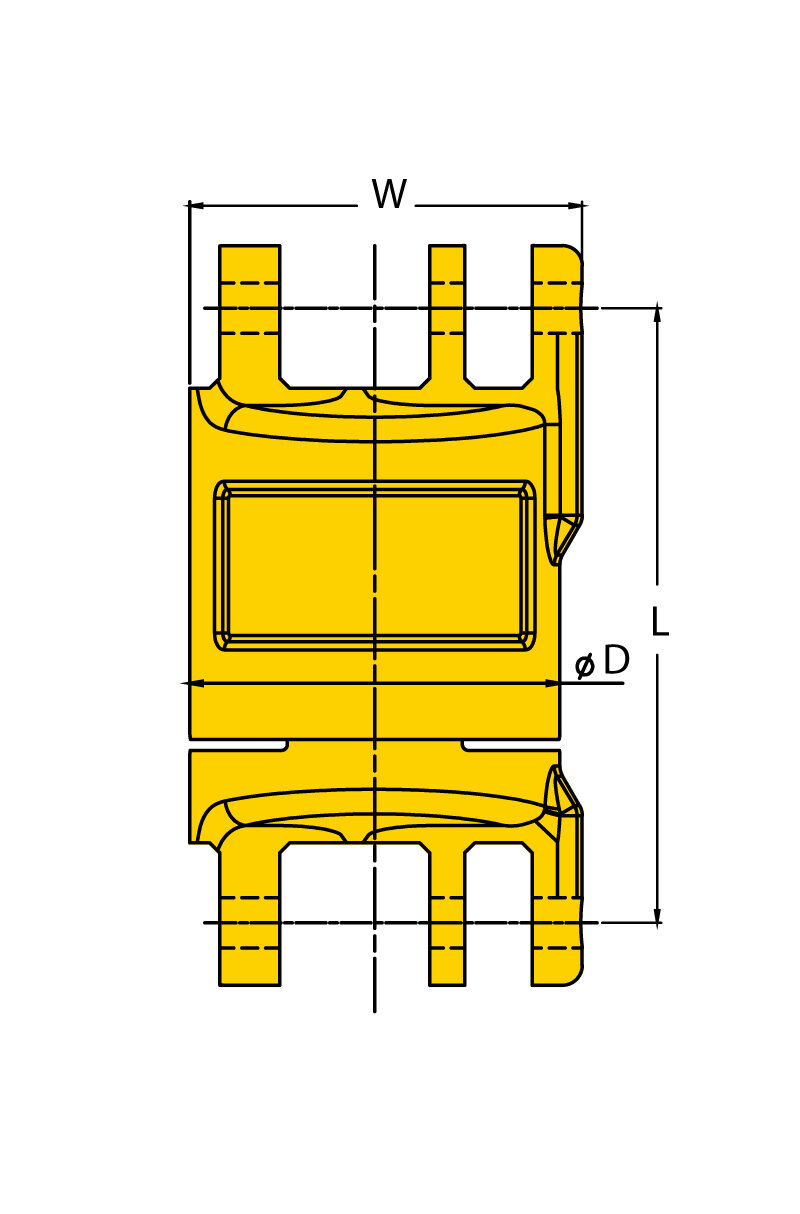

Yoke 8-088N Insulated Blank Swivel measurements
Select a row from the table below, then click the add to quote button
Part Code Chain diameter WLL
ton
D
mm
L
mm
Weight
kg
11.468-088N-07 7 2 50 75 0,6
11.468-088N-10 10 3,15 62 94 1,2
11.468-088N-13 13 5,3 77 123 2,4
11.468-088N-16 16 8 94 143 4,2
11.468-088N-20 18 12,5 109 164 6,7
