Hook is equipped with spring loaded safety latch.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

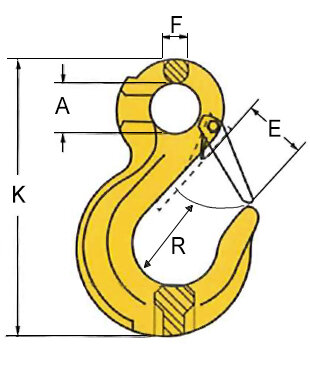

Part Code WLL
ton
For chain dia.
mm
K
mm
E
mm
F
mm
R
mm
A
mm
Weight
kg
42040152F 1,12 6 108 24 9 21 20 0,3
42040155F 2 7/8 133 30 11 26 25 0,4
42040142F 3,15 10 167 34 15 39 38 0,9
42040144F 5,3 13 213 39 19 54 43 1,7
42040146F 8 16 255 46 23 64 50 3,2
42040148F 12,5 20 305 40 24 80 62 5,8
42040149F 15 22 348 71 32 80 62 8,5
42040150F 21,2 26 394 81 35 82 64 13
42040151F 31,5 32 480 102 37 112 68 17
