Strong weldable load lashing point.



  • Material: Steel
  • Finish: Non-coated
    Select a row from the table below, then click the add to quote button

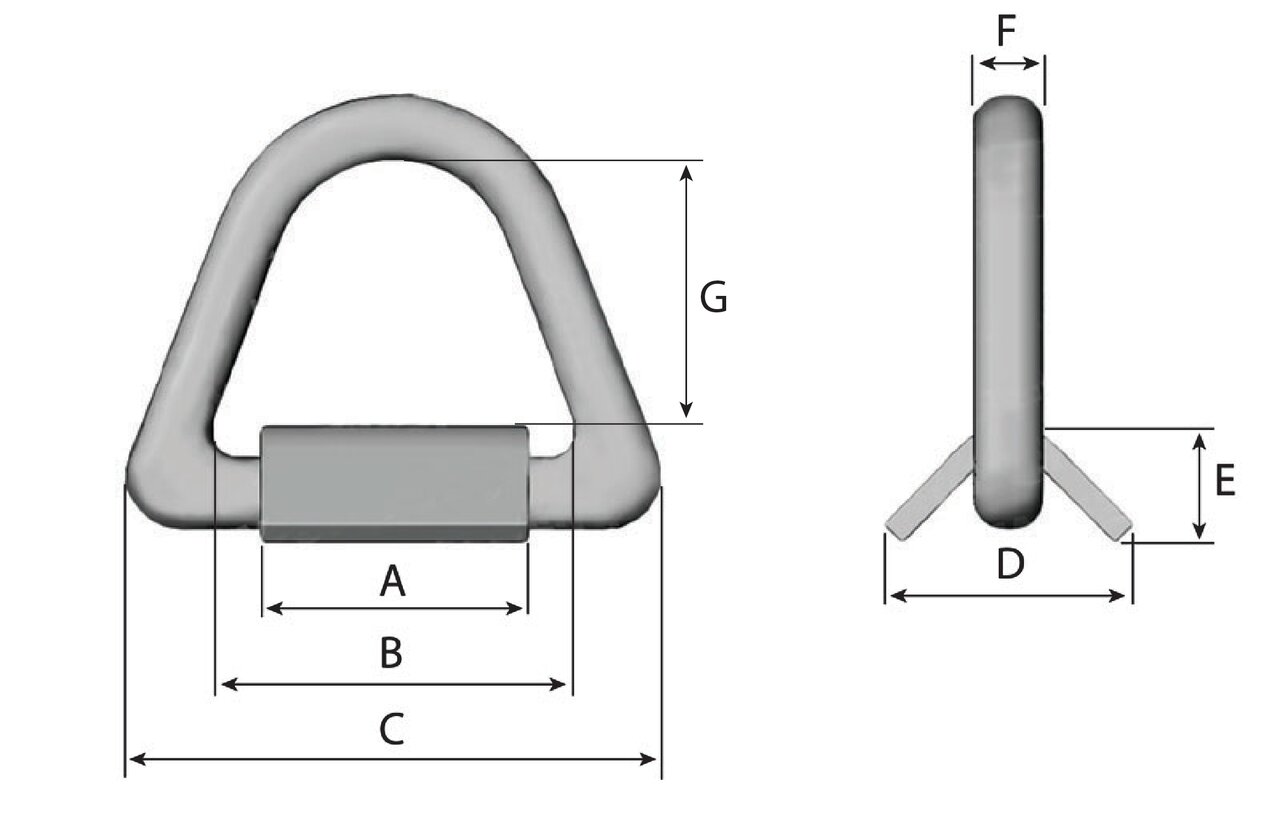

    Part Code LC
    daN
    A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    Weight
    kg

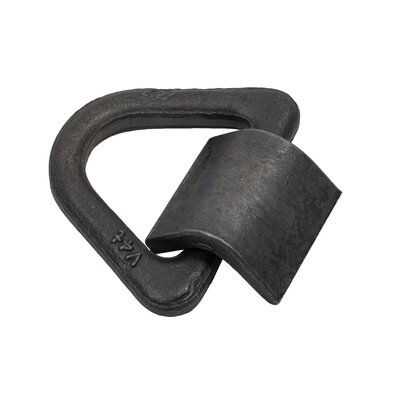

    KIPH4 2 000 50 64 101 51 24 12 41 0,5
    KIPH10 5 000 64 76 114 49 35 18 62 0,8

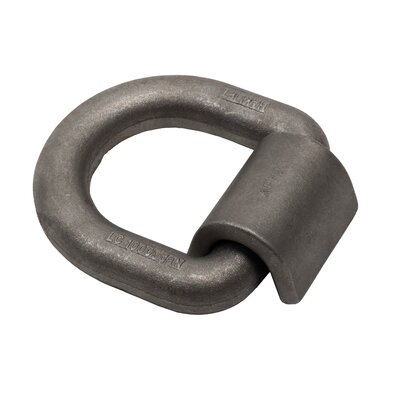

    KIPH20 10 000 80 91 134 63 34 19 76 1,2

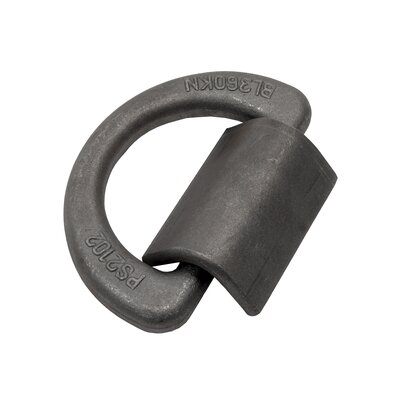

    KIPH36 18 000 120 134 205 71 39 23 63 2,9

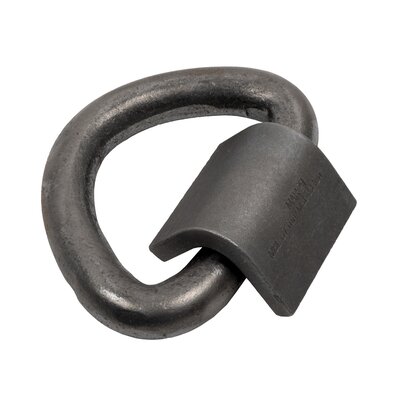

    KIPH67 33 500 100 145 212 108 60 35 72 5,3
