Kito
General: This chain hoist gives you safe operation in potentially explosive atmosphere. It is protected against explosive gases, vapors and dust. Hereby KITO ensures the qualified use of the KITO CB ATEX chain hoist series conforming to the ATEX Directive.
Available for use in T4 temperature environments.




Options:
- Different suspension types include: include top hook and KITO Universal Trolleys TS model ATEX version (plain or hand geared trolley configurations) for improved load control.
- Overload Protection Device (OLL): the unique slip clutch mechanism protects the hoist from damage in the event of an excessive overload without increasing the size of the unit.
- Special capacities are available on request.
  • Marking: Type plate with WLL, CE-marking and serial number.
  • Finish: Painted.
  • Safety factor: 4:1
Kito CB Atex
CBSG_Atex_cut
CBSG_Atex_hook

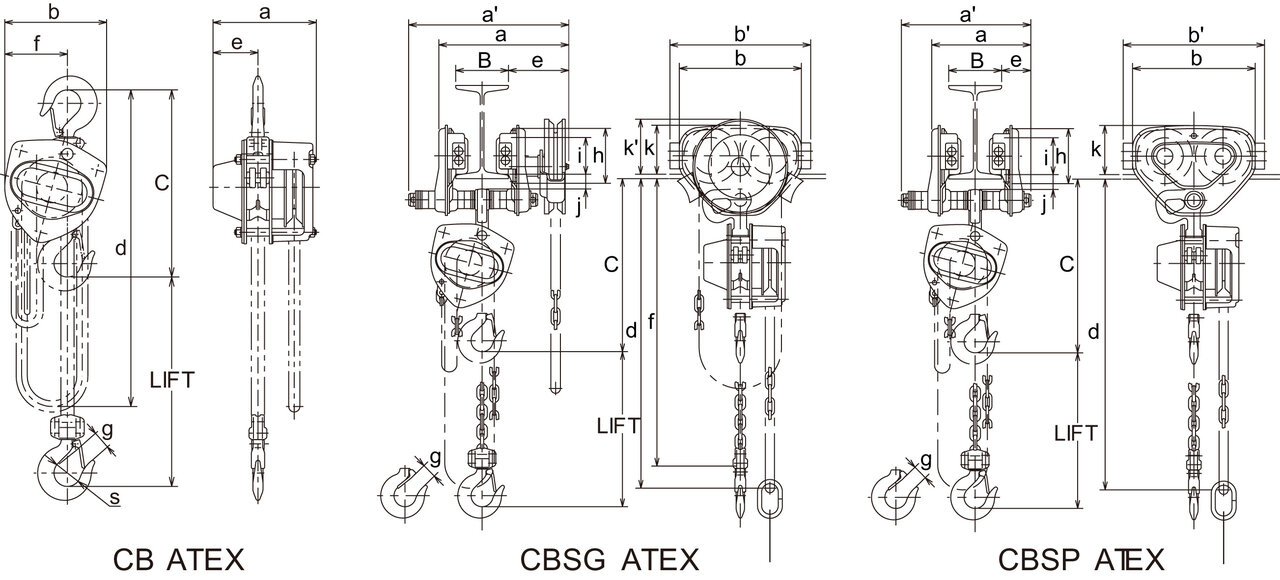

Kito CB ATEX_dwg
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Lifting height
m
Type s
mm
Load chain Ø
mm
Chain falls Chain pull to lift full load daN Headroom C
mm
A
mm
B
mm
D
mm
e
mm
f
mm
g
mm
Weight
kg
16.10CB005ESH030030 0,5 2,5 CB005 ATEX 42,5 6,3 x 19 1 29 295 162 161 2 500 71 99 39 11,5
16.10CB010ESH030030 1 2,5 CB010 ATEX 47,5 7,1 x 21 1 35 350 171 182 2 500 78 112 34 14,5
16.10CB020ESH030030 2 3 CB020 ATEX 56 7,1 x 21 2 33 510 171 235 3 100 78 162 42,5 24
16.10CB030ESH030030 3 3 CB030 ATEX 63 9,0 x 27 2 34 600 192 282 3 600 91 194 46,5 41
