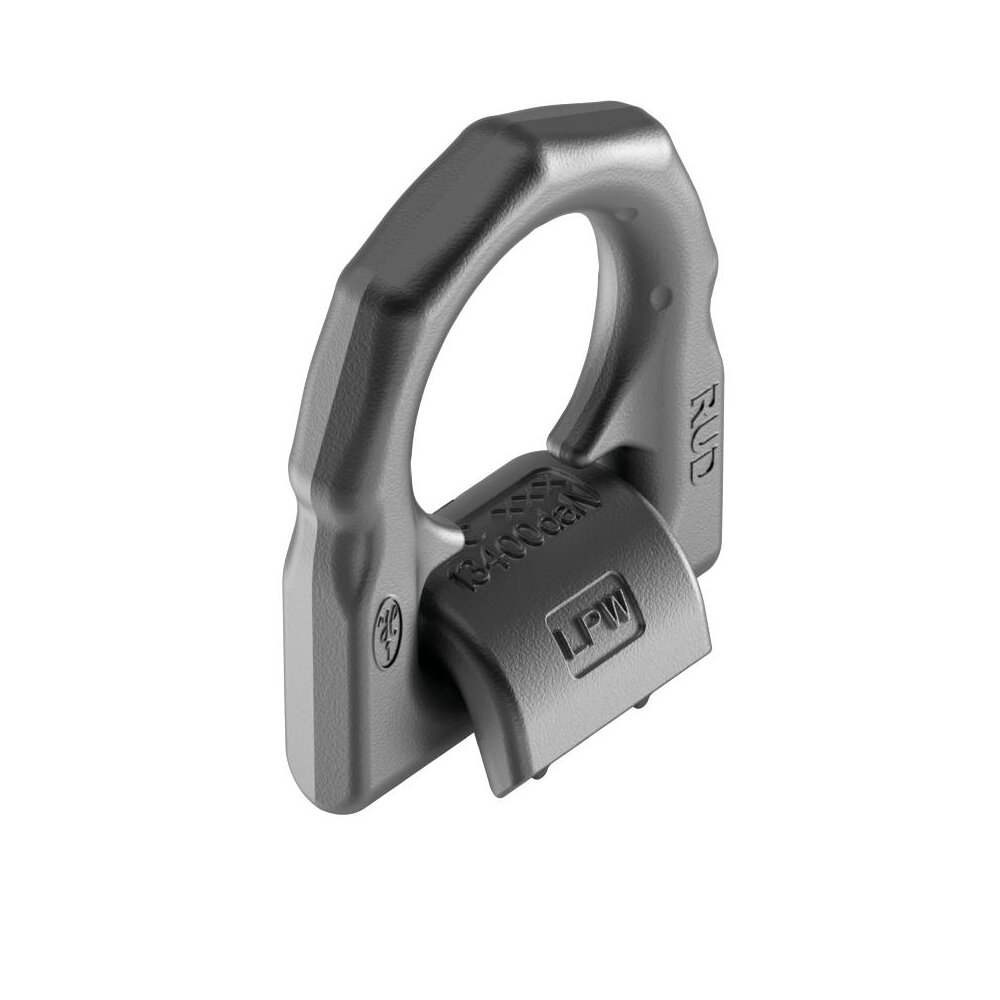

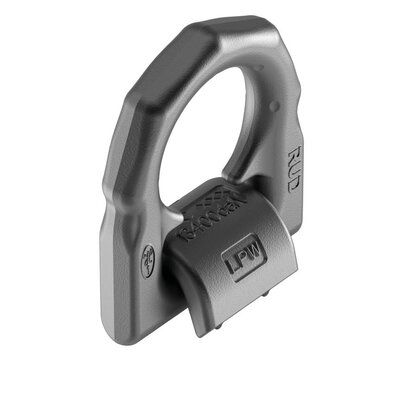

Weld-On Lashing Point RUD LPW

The lashing point for all situations.


  • Lift bail can be pivoted through 180°.
  • LC possible up to 90° in load ring plane.
  • Clear indication of the lashing capacity in daN.
  • Functionally optimised shape of the suspension ring for better support at side loading and protection of the clampin

Show more

Вход в Интернет-магазин
Product number:
The lashing point for all situations.

  • Lift bail can be pivoted through 180°.
  • LC possible up to 90° in load ring plane.
  • Clear indication of the lashing capacity in daN.
  • Functionally optimised shape of the suspension ring for better support at side loading and protection of the clamping spring.
  • Prepared for easy weld-on.
  • Phosphated surface.
  • The clamping spring achieves noise reduction and keeps the suspension ring in the desired position.
  • Distance knobs on the weld-on block for the necessary distance for root welding.
  • Safety factor: 2:1
