Hoist Ring 8-203

E-mail Get PDF

Rotates through 360° and pivot 180°, rated at 100% at 90°angle.
Load rated parts are 100% magnaflux crack detected.
Individual forged parts and cap screw are traceable to Test Certification.
Bolt are Metric thread (ASME / ANSI B18.3.1M).
Proof tested to 2.5 times the WLL.
Fatigue rated to 1.5 t

Show more

Show all variants

Log in to webshop
Product number:

Rotates through 360° and pivot 180°, rated at 100% at 90°angle.
Load rated parts are 100% magnaflux crack detected.
Individual forged parts and cap screw are traceable to Test Certification.
Bolt are Metric thread (ASME / ANSI B18.3.1M).
Proof tested to 2.5 times the WLL.
Fatigue rated to 1.5 times the WLL.
Quick and simple assembly, just a tapped hole is required.

  • Material: Manufactured from forged alloy steel, quenched and tempered.
  • Marking: According to standard, CE-marked
  • Standard: EN 1677-1
  • Safety factor: 4:1

Filters & subcategories

Show results
Filters

Show more filters

* Proof Load is 2.5 times the Working Load Limit on the 4:1 design factor.











After click on the “Show table” button, you will see the table with all technical details about the product.

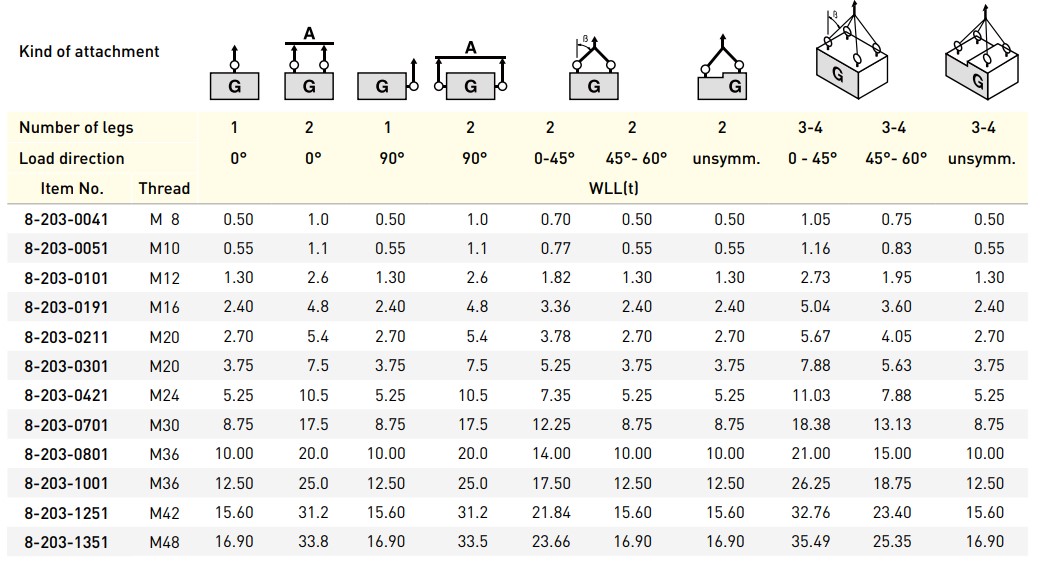

Art nr.
Method of lifting
 Lifting Chart 1 Lifting Chart 2 Lifting Chart 3 Lifting Chart 4 Lifting Chart 5

 Lifting Chart 7

 Lifting Chart 6
Lifting Chart 8


Number of legs
1
2
1
2
2
2
3-4
3-4
2
3-4

Angle of inclination
0°
0°
90°
90°
0°-45°
45°-60°
0°-45°
45°-60°
unsymm.
unsymm.
11.418-203-004
M 8
0,55
1
0,55
1
0,7
0,55
1,05
0,75
0,55
0,55
11.418-203-005
M 10
0,55
1,1
0,55
1,1
0,77
0,55
1,16
0,83
0,55
0,55
11.418-203-010
M 12
1,3
2,6
1,3
2,6
1,82
1,3
2,73
1,95
1,3
1,3
11.418-203-019
M 16
2,4
4,8
2,4
4,8
3,36
2,4
5,04
3,6
2,4
2,4
11.418-203-21
M 20
2,7
5,4
2,7
5,4
3,78
2,7
5,67
4,05
2,7
2,7
11.418-203-30
M 20
3,5
7,5
3,5
7,5
5,25
3,5
7,88
5,63
3,5
3,5
11.418-203-042
M 24
5,25
10,5
5,25
10,5
7,35
5,25
11,03
7,88
5,25
5,25
11.418-203-070
M 30
8,75
17,5
8,75
17,5
12,25
8,75
18,38
13,13
8,75
8,75
11.418-203-110
M 36
13,75
27,5
13,75
27,5
19,25
13,75
28,88
20,63
13,75
13,75
11.418-203-125
M 42
15,6
31,2
15,6
31,2
21,84
15,6
32,76
23,4
15,6
15,6
11.418-203-135
M 48
16,9
33,8
16,9
33,8
23,66
16,9
35,49
25,35
16,9
16,9
