Foldable beam lift - Forankra Pol

Home / Lifting Assortment / Material handling / Lifting beams / Foldable beam lift

Lifting bar can be adjusted longitudinally. Equipped with overload protection and chrome coated cylinders. Beam is foldable, so it can be transported for example in a van.

Material: Steel
Marking: CE-marked
Finish: Painted, yellow

Select a row from the table below, then click the add to quote button

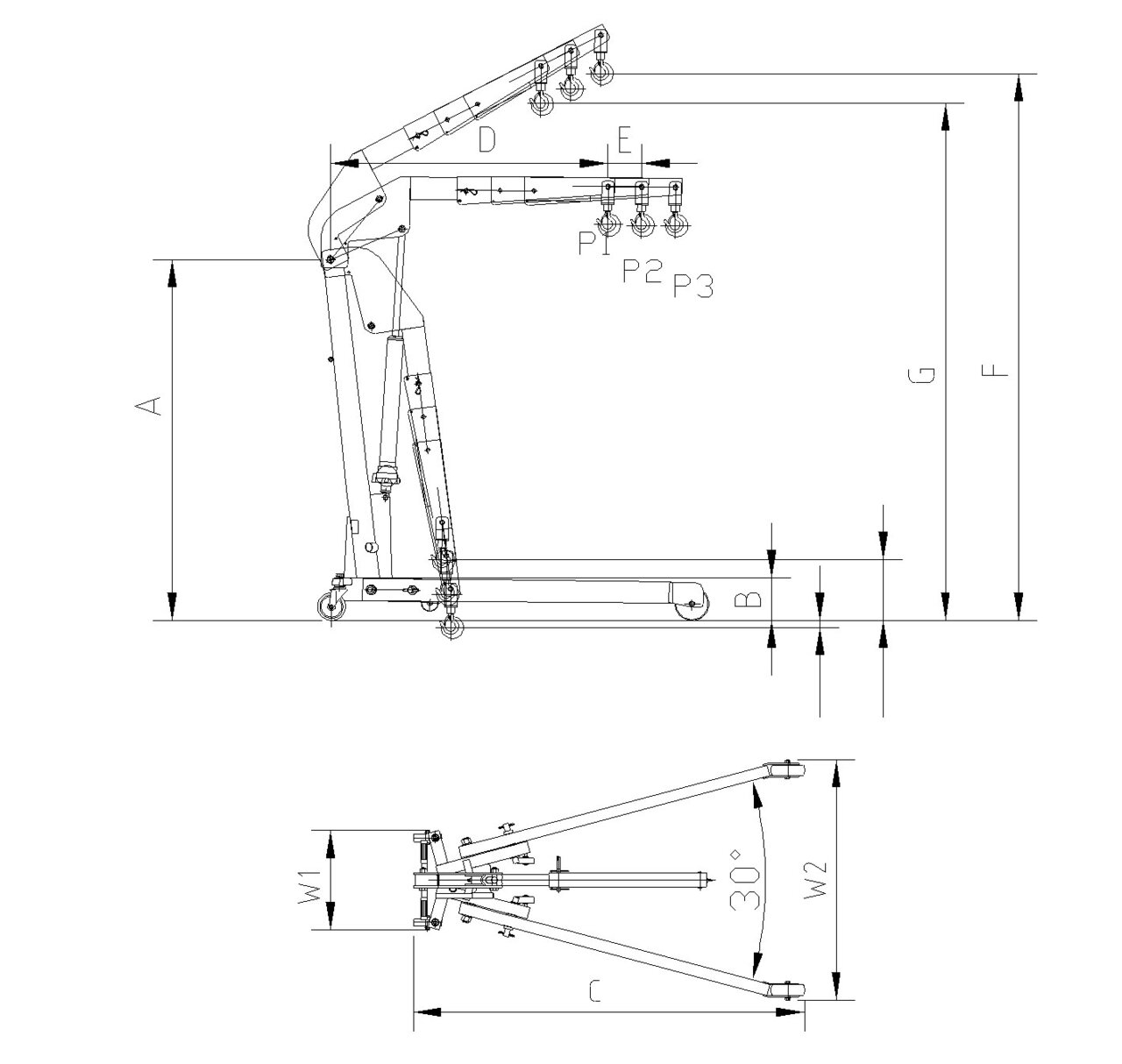

Part Code	WLL	A mm	B mm	C mm	D mm	E mm	F mm	G mm	W1	W2	Weight
PUNOS500PROKT	0,5	1 410	165	1 510	895	102	2 120	1 960	460	948	75
PUNOS1000PROKT	1	1 597	90	1 749	1 231	150	2 450	2 320	460	1 100	115
PUNOS2000PROKT	2	1 626	208	1 911	1 293	150	2 490	2 330	590	1 170	165

Max load at different jib lengths (kg)	P1	P2	P3
PUNOS500PROKT	500	425	350
PUNOS1000PROKT	1000	800	700
PUNOS2000PROKT	2000	1700	1500
