Haklift

Quality and extra small aluminum chain block for professional use with a standard lifting height of 3 meters. Hooks are equipped with swivels. Other lifting heights are available with short lead times from the stock upon request. The hoist can also be used as a puller.



  • Material: Aluminum
  • Marking: CE-marked
  • Finish: Painted, white / orange
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Lifting height
m
Chain size
mm

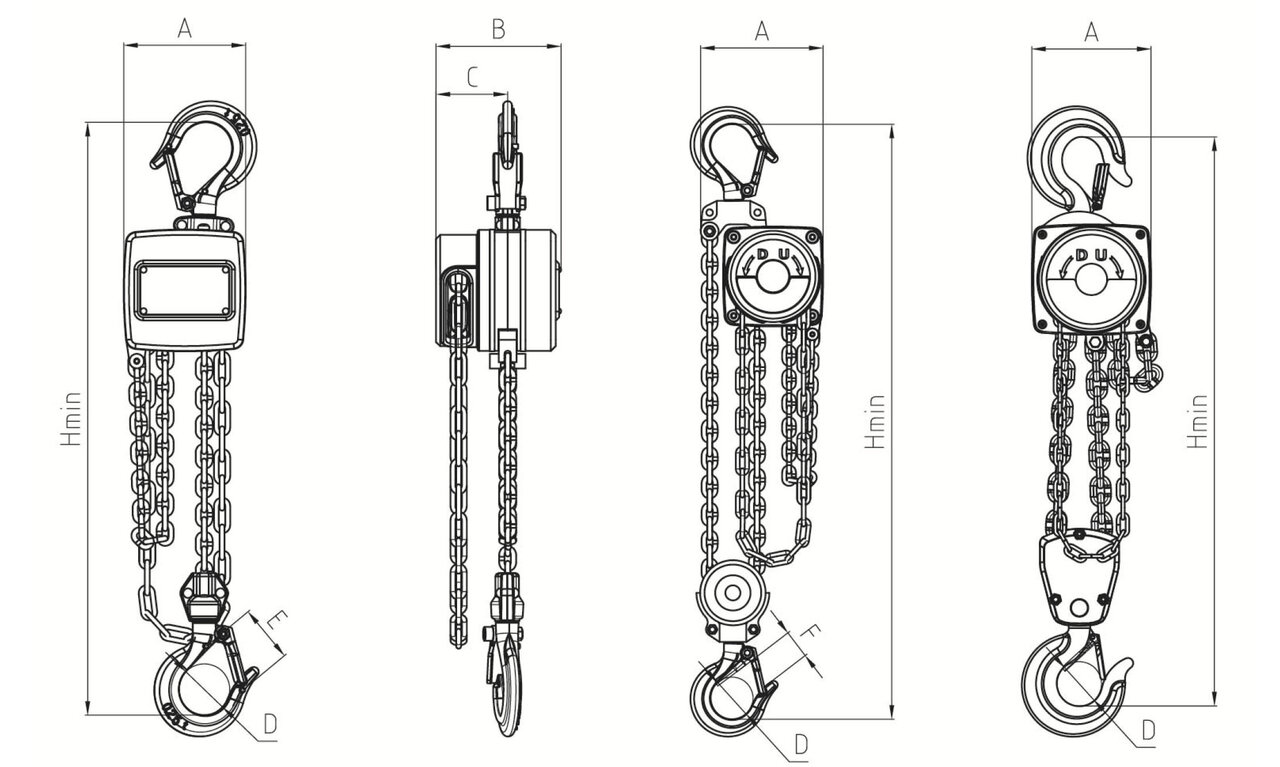

Chain falls A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
H min
mm
Weight
kg
43050095F 0,25 3 3,2 x 9 1 75 77 44 32 35,5 21 225 2,6
43050096F 0,5 3 4,3 x 12 1 92 89 51 34,5 42 23 265 4,6
43050097F 1 3 5,6 x 15,7 1 110 102 55 42,5 49,5 27 295 6,6
43050098F 2 3 8 x 24 1 145 138 78,5 46,5 58,5 35 390 13,5
43050099F 3 3 7,1 x 19,9 2 165 120 68 50 61,9 37 470 17
