Kito
General: The electric chain hoist engineered for the food industry. Food grade lubricants used on the load chain and in the gearbox are NFS H1 compliant for safe use in any facility where incidental contact with products is a concern.
It lifts from 500 kg up to 2 tons.


Standard configurations:
- 400 V/50 Hz/3P
- Standard lifting height 3 m
- Electromagnetic brake: improved performance and safety
- Robust Aluminium die-cast body protects the frequency inverter against external influences
- White epoxy bottom hook
- Stainless steel hook latch
- Totally enclosed, fan-cooled electric motor
- Low-maintenance and easy-operation frequency inverter for 2 lifting speeds for an exact positioning of the load
- Contactor control for single speed
- Carbon friction clutch: protects the chain hoist in the case of an overload against damages and offers the user a higher degree of safety
- Canvas chain container as standard
- Upgraded annealing process of the nickel-plated load chain (class DAT in accordance with standard EN 818-7) with high strength (800 N/mm2) ensures ultimate resistance and durability

Options:
- Corrosion resistant hook kit - stainless steel load hook, stainless steel rubber cushion (0.5t & 1t), nickel plated stopper (0.5t & 1t), stainless steel chain spring & limiting plate (2t)
- Corrosion resistant trolley kit - stainless steel trolley wheels, stainless steel guide rollers, nickel plated suspender, nickel plated suspension shaft
- Stainless steel, plastic or canvas chain container
- Pendant cover
  • Temperature range: -20ºC up to +40ºC.
Kito FER2 500kg KE format

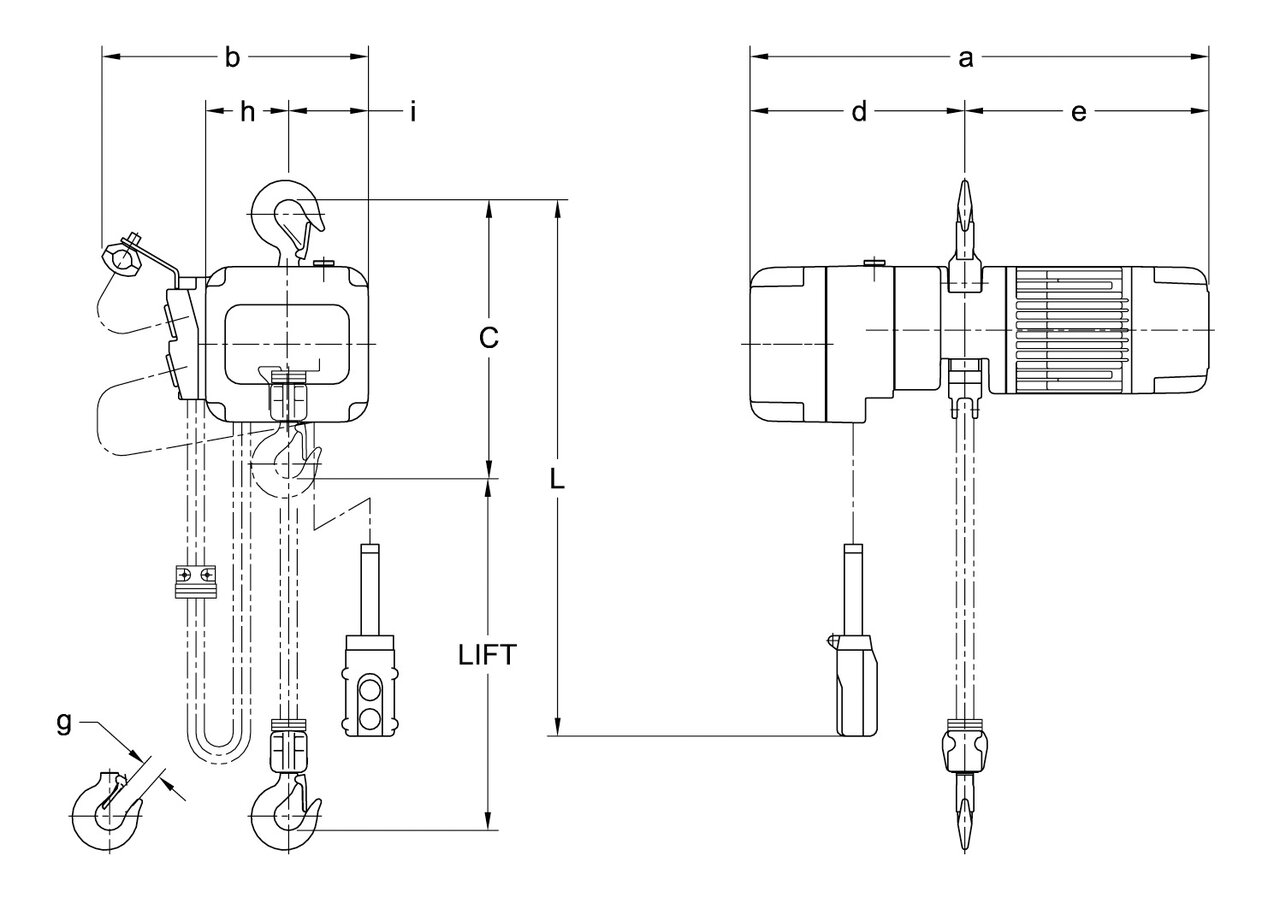

FER2-Hoist_dwg
Select a row from the table below, then click the add to quote button
WLL
ton
Product code Lifting speed
m/min.
Hoist motor H.P. Bottom hook headroom. Standard
mm
Bottom hook headroom. Stainless steel
mm
Rated current (amsp) 220V Rated current (amsp) Load chain falls 440V Rated current (amsp) Weight 575V kg
0,5 FER2005L 4,6 0,75 370 452 3,4 1,7 1,4 33
1 FER2010L 4,3 1,2 432 539 4,8 2,5 1,8 48
2 FER2020L 4,3 2,4 574 594 8,6 4,2 3,3 74

Dimensions

WLL
Product
C
D
a
b
d
e
f
g
h
i
tons
code
mm









0,5
FER2005L
370
490
513
348
242
271
283
27
113
106
1
FER2010L
430
550
589
376
291
298
335
31
129
118
2
FER2020L
575
630
646
427
308
338
384,5
39
160,5
137,5
