Extra large masterlink for chain sling assemblies.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

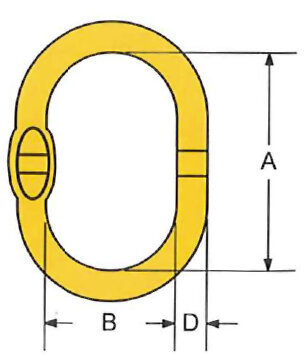

Part Code WLL
ton
For chain mm, 1-leg For chain mm, 2-leg A
mm
B
mm
D
mm
Weight
kg
42040299F 3,2 10 7/8 190 100 16 0,86
42040101F 6,4 13 10 300 210 25 5,53
42040079F 7 13 10 210 110 22 1,83
42040102F 11 16 13 300 210 32 5,94
42040081F 11,5 16 13/16 270 140 28 3,8
42040083F 17 22 20 270 140 32 5,05
42040330F 19 22 20 420 220 38 10,78
42040087F 27 26 22 470 250 45 17,06
42040085F 28 26 22 270 140 38 7,29
42040088F 45 36 32 380 200 50 17,65
42040331F 65 36 32 430 220 60 28,85
