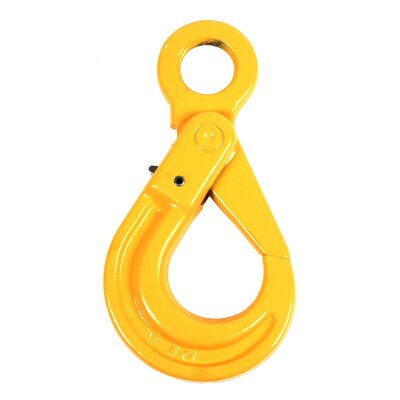

The hook locks automatically when lifting starts.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

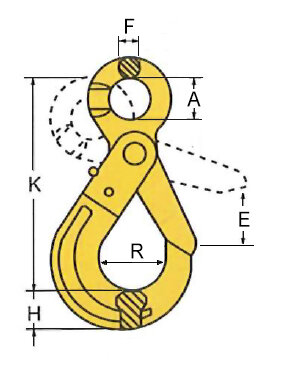

Part Code WLL
ton
For chain dia.
mm
K
mm
H
mm
E
mm
F
mm
R
mm
A
mm
Weight
kg
42040246F 1,12 6 110 19 28 10 34 22 0,5
42040247F 2 7/8 136 24 34 12 46 25 0,8
42040238F 3,15 10 171 30 44 15 56 32 1,43
42040239F 5,3 13 208 30 52 19,5 69 40 2,86
42040240F 8 16 257 50 60 22 86 56 5,64
42040241F 12,5 20 275 55 81 27 100 64 7,6
42040242F 15 22 320 67 82 30 98 70 13
42040243F 21,2 26 363 75 110 34 110 80 18
42040244F 31,5 32 472 97 168 45 166 105 44,5
