Eye grab hook is used for shortening chain legs of a sling. The grab hook is attached to the master link with the same connection link as the chain.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

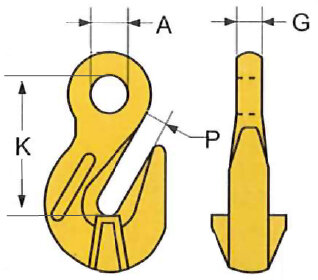

Part Code WLL
ton
For chain dia.
mm
A
mm
K
mm
P
mm
Weight
kg
42040059F 1,12 6 13 51 8 0,14
42040062F 2 7/8 18 61,5 10 0,245
42040048F 3,15 10 20 80 13 0,65
42040050F 5,3 13 26 99 16 1,39
42040052F 8 16 30 104 20 2,2
42040054F 12,5 20 37 140 25 4,6
42040056F 15 22 44 165 28 8,2
42040057F 21,2 26 41 188 30 9,8
42040058F 31,5 32 57 228 38 19,4
