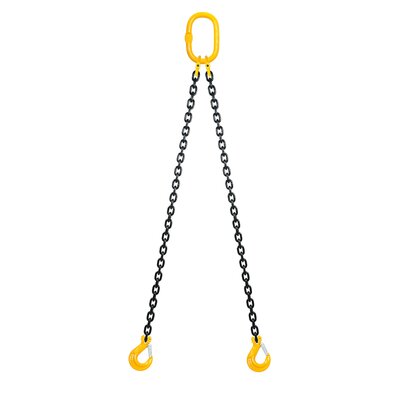

Chain sling 2-legs with latch hooks, grade 80

2-legs chain sling assembly equipped with safety hooks. Alternative ends are also available, e.g. foundry hooks, shackles etc. Slings are equipped with a load plate.

The L-dimension is measured from the inside of the top of the master ring to the inside of the bottom of the hooks.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, black / yellow
  • Standard: EN 818-4
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
