Eye grab hook is used for shortening chain legs of a sling. The grab hook is attached to the master link with the same connection link as the chain.



  • Material: Steel
  • Marking: CE-marked
  • Temperature range: -29 - (+)205°C
  • Finish: Painted, blue
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

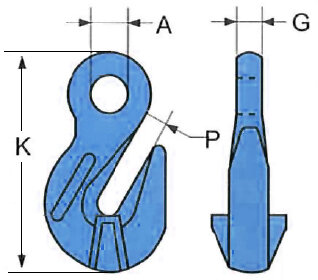

Part Code WLL
ton
For chain dia.
mm
P
mm
K
mm
A
mm
Weight
kg
42050044F 1,4 6 8 71 14 0,2
42050045F 2,5 8 10 91 18 0,28
42050046F 4 10 13 127 22 0,72
42050048F 6,7 13 16 163 28 1,6
42050050F 10 16 19 183 36 2,45
42050053F 16 20 24 227 43 4,72
42050054F 19 22 27 260 48 8,2
