Clevis self-locking hook, grade 100

Material: Steel
Marking: CE-marked
Temperature range: -29 - (+)205°C
Finish: Painted, blue
Warning: Not to be heat-treated

The chain is attached to the hook with clevis without a connecting link. The hook locks automatically when lifting starts.

Select a row from the table below, then click the add to quote button

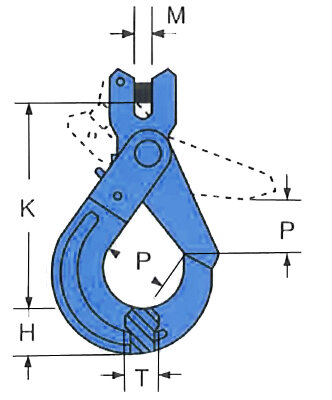

Part Code	WLL ton	For chain dia. mm	P mm	M mm	T mm	H mm	K mm	Weight kg
VAKAH106	1,4	6	28	8	15	19	95	0,5
VAKAH1078	2,5	8	35	9	20	24	121	0,9
VAKAH1010	4	10	45	12	26	28	146	1,6
VAKAH1013	6,7	13	53	15	32	40	182	2,9
VAKAH1016	10	16	62	18	38	51	218	5,8
VAKAH1020	16	20	76	25	45	55	239	8,6
VAKAH1022	19	22	80	25	52	67	280	12,1
